Why Is ASTM A928 Duplex S32205 Pipe Popular in Chemical Plants?

If you work in chemical processing procurement, you've probably come across duplex stainless steel pipes more than once. But what makes one grade rise above the rest? The answer, for many plant engineers and buyers, comes back to the same material: ASTM A928 Duplex S32205 Stainless Steel Pipe. With its balanced dual-phase microstructure, high mechanical strength, and proven resistance to pitting and stress corrosion cracking, this pipe has earned a strong reputation in chemical plants across North America, Europe, and beyond. This guide walks you through everything you need to know before making a sourcing decision.

Understanding ASTM A928 Duplex S32205 Stainless Steel Pipe

What Does ASTM A928 Mean?

Pipes made of austenitic and duplex stainless steel that have been electric fusion welded (EFW) must meet ASTM A928. It tells people how to make things, test them mechanically, and check their work. This standard says that solution annealing and water quenching are the only ways to make S32205 (also called UNS S31803). This makes the microstructure of big pipe pieces the same.

Chemical Composition and Mechanical Properties

Chromium makes up about 22% of S32205, nickel about 5%, and molybdenum about 3%. Its tensile strength is at least 65 ksi (450 MPa), which is about twice as high as regular 316L stainless steel. The microstructure that this mix makes is about 50/50 austenite and ferrite. This makes it more resistant to stress corrosion cracking caused by chlorides, which is a type of failure that happens a lot in chemical service for austenitic grades.

Manufacturing Quality at YOUFA

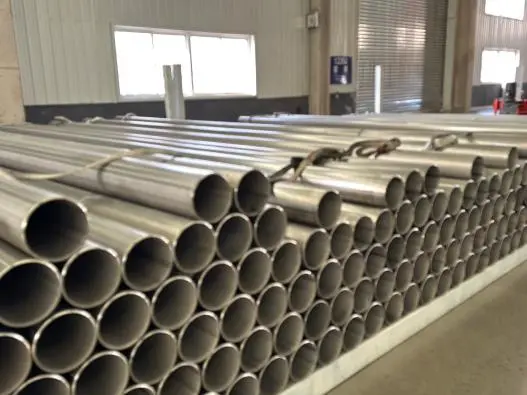

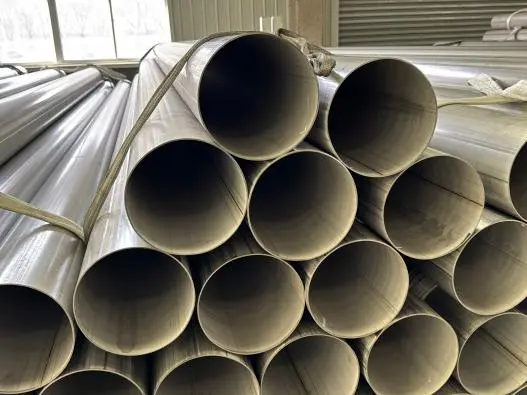

ASTM A928 Duplex S32205 pipes are made by YOUFA with EFW. After the weld, the metal is cooled in water and solution annealed. The OD can be anywhere from 114.3 mm to 2,500 mm, and the wall thickness can be anywhere from 3 mm to 50 mm. Pickling and heat treatment are used to finish the surface. On every production batch, there is an RT/UT inspection, a hydraulic test, and a full mechanical and chemical check. ISO9001, PED, ISO 17025 lab, and TÜV have all approved the building. You can ask for data on MTC/MTR (3.1/3.2), TPI, WPS/PQR, MPS, and UT/RT.

Key Benefits Driving the Popularity of S32205 Pipes in Chemical Plants

Managers of chemical plants choose a pipe grade not based on how well it sells, but on how long it lasts. ASTM A928 Duplex S32205 Stainless Steel Pipe is in the right place because it always does better than other choices in the worst conditions.

People want to use it because of these main performance benefits:

• Superior pitting resistance: S32205 carries a Pitting Resistance Equivalent Number (PREN) of approximately 34–36, compared to roughly 24 for 316L. This directly translates to longer service life in chloride-containing process streams, acid washes, and brine circuits.
• Resistance to stress corrosion cracking (SCC): The ferritic phase in the duplex microstructure interrupts the crack propagation paths that cause SCC failures in purely austenitic grades — a known problem in chemical plants operating above 60°C with chloride exposure.
• Higher strength at lower wall thickness: Because S32205 offers roughly double the yield strength of 316L, engineers can specify thinner walls without sacrificing pressure ratings, reducing material weight and total installed cost.
• Better value than super duplex: Super duplex grades like S32750 offer higher PREN values (above 40) but at significantly higher alloy cost. For the majority of chemical plant applications, S32205 delivers the right performance-to-cost ratio without over-engineering the solution.

It's a better deal than super duplex: It costs a lot more to get grades of super duplex like S32750 that have PREN ratings above 40. Without making things too hard to understand, S32205 has the best performance-to-cost ratio for most chemical plant uses.

Selection Criteria: How to Choose the Right Duplex Pipe for Chemical Plants?

S32205 vs. S31803: What's the Difference?

Many standards still use UNS S31803, but S32205 is the newer, tighter version that makes sure there is a higher minimum amount of nitrogen (0.14–0.20%) and chromium (22% vs. 21%). Because of this, the acceptable microstructure window gets smaller, which makes corrosion performance more stable. For critical chemical work, it's better to specify S32205.

Temperature and Pressure Ratings

ASTM A928 Duplex S32205 Stainless Steel Pipe works well from -50°C to 300°C. It can become less tough when the temperature goes above 300°C and intermetallic phases form. This is the safe range for most of the process lines in a chemical company. This grade works great for heat exchangers, acid transfer pipes, and reactor feed lines.

Supplier Qualification Checklist

The following should be checked by buying teams before they place an order:

• Valid mill test reports (MTC 3.1 or 3.2) traceable to the heat number
• Third-party inspection (TPI) reports from recognized bodies
• Manufacturer certifications: ISO9001, PED, TÜV
• WPS/PQR documentation confirming qualified welding procedures
• Confirmed production lead times and port-of-export logistics

— Mill test reports that are valid (MTC 3.1 or 3.2) and can be connected to the heat number

Application Scenarios of Duplex S32205 Pipes in Chemical Plants

Corrosive Process Piping

As long as the amounts and temperatures stay in the right range, S32205 can be used regularly with sulfuric acid, phosphoric acid, and nitric acid. This grade is important for chemical plants that use whitening agents, chlorinated liquids, or seawater cooling circuits because it stops pipe sections from pitting, which would require them to be replaced too often.

Heat Exchangers and Pressure Vessels

For shell parts in heat exchangers and pressure tank nozzles, large EFW pipes with an outside diameter of 500 to 2,500 mm are often used. It is possible to make shell walls that are thinner when they are both strong and resistant to corrosion. This makes it easier for heat to move and makes the thing lighter.

Offshore and Desalination Cross-Industry Applications

The duplex ASTM A928 Duplex S32205 Stainless Steel Pipe is often used in ocean brine input lines and desalination plant pipes, as well as in chemical plants. This is because 316L would break in these conditions very quickly. These uses help people trust decisions about buying things from other industries and add to the material's track record.

Procurement Guidance for Global Buyers

Pricing Factors and MOQ

ASTM A928 S32205 pipe costs depend on its outside diameter (OD), wall thickness, order number, and the nickel/molybdenum alloy fees that are in effect at the time of the quote. One pipe is all you need to place an order on YOUFA. This is helpful for both testing samples and getting everything you need for a whole job. When you buy more than a project, you can get volume discounts and cuts at a set length.

Lead Times and Logistics

The 15 lines at YOUFA make 50,000 tons of goods every year. The fastest way to get standard sizes to Tianjin Port is in just 7 days. To keep things safe, there are wooden boxes (with a steel frame option), hexagonal binding, and woven bags. They can be used for both containerized shipping and shipping of large items in pieces.

Documentation and Compliance Support

People who buy things in managed markets, such as the U.S., EU, and Australia, must always follow the rules when it comes to paperwork. You can get standard supply papers from YOUFA for MTC/MTR (3.1/3.2), TPI, WPS/PQR, MPS, and UT/RT reports. These papers help with project inspections and customs processing.

Conclusion

It is known that standard austenitic grades can only handle a certain amount of pressure, and chemical plants often have corrosion failures. It's not a trend to use ASTM A928 Duplex S32205 Stainless Steel Pipe; it's a good way to solve these problems. The ASTM A928 standard adds another level of quality assurance by making it clear how things should be made, tested, and documented. In order to make sure that the suppliers are certified, the mill test results are reviewed, and the welding process meets the needs, procurement teams must buy pipes for chemical service. These steps keep the plant and the cash healthy in the long run.

FAQ

Why is S32205 better than 316L stainless steel in chemical service?

The PREN for 316L is about 24, while the PREN for S32205 is about 34–36. Also, its yield strength is about twice as high. This means that walls can be smaller and still hold the same amount of pressure. The more important thing is that its duplex microstructure stops stress corrosion cracking in chloride environments. 316L can't reliably handle this kind of failure above 60°C.

Is ASTM A928 Duplex S32205 suitable for high-temperature chemical applications?

Yes, but only up to a certain point. Up to about 300°C, the S32205 works fine. If that limit is passed, the sigma phase discharge can make the impact hardness lower. The grade has been used for a long time because it is safe for most chemical plant process lines to be in this temperature range.

How do I verify that a supplier's S32205 pipe meets ASTM A928?

Ask for the exact heat number to be linked to the MTC 3.1 or 3.2 mill test result. Check to see if the chemistry makeup and test results for mechanical strength meet the rules set by S32205. To make sure the weld process meets ASTM A928 standards, look for third-party inspection (TPI) reports and ask for the manufacturer's WPS/PQR items.

What documentation should I expect from a qualified supplier?

An honest supplier should give you MTC/MTR (3.1/3.2), UT/RT inspection reports, hydrostatic test records, WPS/PQR reports, TPI reports, and an MPS sheet for the materials they pack. Certifications such as ISO9001, PED, and TÜV add another level of quality control that has been checked.

Get a Quote for ASTM A928 Duplex S32205 Stainless Steel Pipe from YOUFA

YOUFA is a TÜV- and ISO9001-approved business that makes ASTM A928 Duplex S32205 Stainless Steel Pipe. Five hundred thousand tons of steel can be made every year, and it can be sent to Tianjin Port in just seven days. One pipe is the smallest amount that can be ordered. Send your requirements to info@youfass.com or visit youfass.com right away to get a fair price and a full set of instructions.
