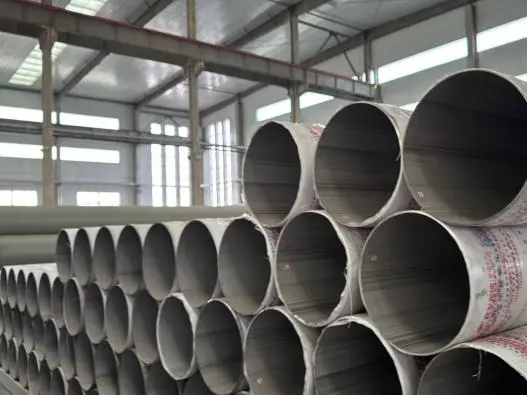

What Makes ASTM A358 Grade 347 Pipes Suitable for Pressure Applications?

ASTM A358 Grade 347 347H Class 1 Steel Pipes demonstrate exceptional suitability for pressure applications primarily due to their stabilized austenitic structure and robust mechanical properties. The incorporation of niobium (columbium) prevents carbide precipitation during welding, maintaining structural integrity at elevated temperatures up to 815°C. With a minimum tensile strength of 515 MPa and yield strength of 205 MPa, combined with a joint efficiency factor of 1.00 achieved through full radiographic inspection, these welded pipes deliver reliable performance in demanding environments where both pressure containment and corrosion resistance are critical requirements.

Understanding ASTM A358 Grade 347 and 347H Steel Pipes

When engineers and procurement staff look at materials for high-pressure systems, they need to know what makes some alloys different. Stainless steel lines that are soldered together and used in corrosive or high-temperature environments are covered by ASTM A358. The Grade 347 and its variant 347H are specialized solutions that meet certain industrial needs where regular stainless steels fail.

Chemical Stabilization Through Niobium

The thing that makes Grade 347 unique is that it is chemically stable. When at least ten times as much carbon is added as niobium, stable niobium carbides are made instead of chromium carbides. This stability is very important when soldering and being exposed to temperatures between 427°C and 815°C afterward. In this temperature range, unstabilized grades like 304 experience intergranular corrosion, which is also known as sensitization. Grade 347, on the other hand, keeps its corrosion resistance in the heat-affected areas next to welds.

Grade 347 Versus 347H: Carbon Content Matters

Specifications for the carbon content are what make the standard 347 different from the 347H. The carbon content in Grade 347H stays between 0.04% and 0.10%, while the carbon content in standard 347 can be lower. At high temperatures, this difference that doesn't seem important makes a big difference in how well something works. Because 347H has more carbon, it has higher creep strength and is better for uses where the load stays on for a long time above 538°C. Power plants that use ultra-critical boilers can benefit greatly from 347H's higher creep rupture strength, which means that it will last longer when subjected to thermal cycling.

Mechanical Properties That Support Pressure Service

ASTM A358 Grade 347 347H Class 1 Steel Pipes must meet strict mechanical requirements in order to keep pressure inside. The minimum tensile strength of 515 MPa is enough to fight internal pressure forces, and the minimum yield strength of 205 MPa makes sure that the shape stays stable under working loads. Class 1 means electric fusion welding with full entry and full radiography examination, which gives the joint an efficiency factor of 1. This lets engineers use the full range of allowable stresses when figuring out pressure vessels without having to use the reduction factors that are usually needed for welds that aren't inspected as carefully.

Comparing these specs to other options, the pros become clear. Type 304 stainless steel has a similar tensile strength, but it is not stabilized, so it can't be used for welded buildings that will be subject to temperatures that make it weaken. Adding molybdenum to Type 316 makes it more resistant to corrosion in general, but it doesn't protect against intergranular attack after welding. Type 321 stabilized with titanium works about as well, but Type 347 stabilized with niobium works better in strongly oxidizing water environments that are common in chemical processing.

Manufacturing and Heat Treatment Processes of ASTM A358 Grade 347 Pipes

Every step in the process of making high-quality welded stainless steel pipes needs to be done with great care. ASTM A358 is the standard for electric fusion welded pipes, which are different from ASTM A312's standards for seamless pipes. Knowing about these differences in making helps procurement teams choose the right goods for their needs.

Electric Fusion Welding Process

As per ASTM A358, Class 1 pipes use electric fusion welding, where the edges of formed plates are joined with filler metal to make double-welded seams. Should this process be done correctly, it creates longitudinal weld seams that are very strong. Modern makers use advanced welding factors that make sure the penetration is always the same, and the heat-affected zone width is kept to a minimum. Because the quality of the weld affects the ability to handle pressure directly, ASTM A358 requires that all longitudinal welds in Class 1 pipes be inspected by X-rays.

At YOUFA, we have 15 specialized production lines that are all equipped with automatic welding systems that keep tight control over the process, and for ASTM A358 Grade 347 347H class 1 Steel Pipes, our way of making things focuses on tracking raw materials, writing down welding parameters, and checking quality in real time to make sure every pipe meets the requirements before it leaves our facility. Our way of making things focuses on tracking raw materials, writing down welding parameters, and checking quality in real time to make sure every pipe meets the requirements before it leaves our facility.

Heat Treatment for Enhanced Performance

The final properties of Grade 347H pipes are greatly affected by the heat treatment methods used. Solution hardening usually takes place between 1040°C and 1150°C, and then the temperature drops quickly. This process breaks down carbides and evens out the microstructure, setting the basic level of resistance to rust and strength. Controlled heat treatment is especially helpful for Grade 347H because it improves the spread of carbon while keeping enough niobium carbide formation for stability.

Unlike unstabilized grades that need to be heated after welding to recover their corrosion protection, Grade 347 can be used directly after welding in most situations. This feature lowers the cost of fabrication and speeds up the building process, especially for big projects that require a lot of field welding.

Quality Control and Certification Protocols

Tough quality control tells the difference between sources you can trust and those who aren't. Comprehensive testing methods include checking the dimensions, the mechanical properties by destroying representative pieces and testing for hydrostatic pressure, and checking the resistance to rust. Traceability is important for code compliance in regulated industries, and material test records that list chemical makeup, mechanical properties, heat treatment parameters, and non-destructive examination results are a good way to do this.

Our quality management system includes a number of checkpoints for verification during production. From the inspection of the steel plate that comes in to the final pressure test, every pipe goes through a written evaluation process. We keep specialized testing tools like spectrometers for checking the chemistry, tensile testers for checking the mechanical properties, and radiographic facilities for checking the welds.

Performance Comparison: ASTM A358 Grade 347 vs Alternatives

The choice of materials has a big effect on how well a system works and how much it costs to maintain over time. When engineers compare Grade 347 to other grades of stainless steel, it helps them make decisions that are best for the application.

Temperature Performance Characteristics

Grade 347H works really well in high-temperature situations because it keeps its allowable stress levels at temperatures where other austenitic stainless steels lose a lot of strength. At 538°C, Grade 347H still has about 70% of its tensile strength at room temperature. At 815°C, it is still strong enough for many pressure applications. Because it can handle high temperatures, it is very useful in superheater tubes, high-pressure steam pipes, and industrial process equipment that needs to work above normal temperature limits.

Standard Grade 347 works well in situations where sensitization resistance is more important than creep strength and the temperature is fairly high, up to about 540°C. Types 304 and 304L aren't good for use above 425°C when they're fused because they might become too sensitive. Type 316 is a little better, but it still can't match the high-temperature properties of stabilized types.

Corrosion Resistance in Aggressive Media

When exposed to temperatures that make metals more sensitive, Grade 347's stable microstructure makes it more resistant to intergranular rust. This trait stops early failure modes that happen with unstable grades in chemical processing environments with hot nitric acid, organic acids, and different oxidizing media. Adding molybdenum to Type 316 makes it more resistant to pitting and crevice corrosion in chloride-containing settings, but Grade 347 is better when post-weld corrosion resistance is the most important thing.

Polythionic acid stress corrosion cracking is a certain type of failure that can happen in refineries when they are shut down and then started up again. This mechanism has caused catastrophic failures in unstabilized stainless steel pipe systems, but Grade 347 is very resistant to it. The lack of chromium-depleted areas at grain boundaries causes this resistance because the electrochemical potential differences that cause cracks to spread are not there.

Welded Versus Seamless Pipe Considerations

Both ASTM A358 soldered pipes and ASTM A312 seamless pipes are used in pressure systems, but each has its own benefits, and for ASTM A358 Grade 347 347H class 1 Steel Pipes, welded construction makes it possible to make pipes with bigger diameters at lower cost, while seamless pipes remove the need to worry about the stability of the weld joint, and the stabilization in Grade 347 is especially useful in welded construction, where heat-affected areas would normally be weak spots, and with a full radiographic check and the Class 1 title, welded pipes are almost as reliable as seamless pipes in most situations.

When making a purchase choice, the diameter needs, pressure levels, and cost should all be taken into account, along with factors that are specific to the application. Welded pipes are most common for uses with diameters above 300 mm, since making smooth pipes is too hard to do technically and too expensive. Even tho they are more expensive, seamless pipes may be better in areas that are very corrosive or where there are worries about the weld line.

Key Applications of ASTM A358 Grade 347 Pipes in Pressure Systems

Using these specialized materials in the real world shows how useful they are in many different fields. Knowing where Grade 347 really shines helps engineers find ways to make systems more reliable and lower their lifecycle costs.

Power Generation Applications

A lot of Grade 347H is used in thermal power plants' superheaters and reheaters, where steam temperatures are higher than 540°C. Thanks to its high-temperature strength and great resistance to rust, it is perfect for these tough jobs. Materials like 347H are used in ultra-critical and supercritical boilers that produce steam at temperatures above 600°C. These materials stay strong even when exposed to high temperatures and high pressures for long periods of time.

The engineering team asked for 347H piping to be used for replacement superheater tubes in a recent project to upgrade a 600 MW coal-fired power station. After five years of use, inspection data showed that there was little oxidation and no discernible creep deformation, which proved that the choice of material was the right one. The plant said that repair breaks happened 20% less often than in the past when lower-quality products were used.

Petrochemical and Refining Industries

The hydrocracker and hydrotreater machines put plumbing systems through harsh conditions that include high temperatures, hydrogen atmospheres, and contaminants that could damage the pipes. Grade 347 is better at protecting against high-temperature hydrogen attack than many other options while still keeping the purity of the weld zone. Heavy petroleum parts are broken down in fluid catalytic cracking units at temperatures around 540°C. These units use 347 pipes for reactor effluent lines and regenerator hookups.

The stabilization properties are especially useful in refineries, where equipment is exposed to polythionic acid formation from sulfur compounds during regular shutdowns. In these situations, traditional stainless steels that weren't stabilized cracked very badly, so business owners now only use stabilized grades like 347 for important pipe circuits in refinery complexes.

Chemical Processing Equipment

Fertilizer, organic chemical, and specialty substance manufacturers use reactors and distillation systems that work at high temperatures and in harsh chemical conditions. Grade 347 pipes can handle hot nitric acid, high-temperature organic acid processes, and different oxidizing salt solutions that would quickly eat away at carbon steel or rust unstabilized stainless steels.

In a hot phosphoric acid reduction system, a specialty chemical company recently switched from carbon steel pipes to Grade 347 pipes. The installation stopped corrosion problems that used to happen every 18 to 24 months, which cut unexpected downtime by 85%. Better stability led to production optimization that raised yearly output by 12%, demonstrating how choosing the right materials can affect the total performance of a business.

Procurement Guide for ASTM A358 Grade 347 and 347H Pipes

To get important materials for pipes, you need to carefully evaluate suppliers and communicate your needs clearly. It's helpful for procurement workers to know about the main factors that affect the quality of a product, how reliably it is delivered, and its total cost of ownership.

Supplier Qualification and Certification

Manufacturers you can trust have quality management systems that meet international standards and the right production approvals, and for ASTM A358 Grade 347 347H class 1 Steel Pipes, manufacturers of pressure vessels and pipes who are certified by ASME can be sure that their materials are ASTM-compliant, and reports on materials that have been tested should include full chemical analyzes, information on mechanical properties, and proof of how the materials were heated and inspected.

When looking at possible sources, make sure they have proof that they have worked on similar projects in your business before. References from past customers are a great way to learn about how well delivery works, how well technical help is, and how quickly quality issues are addressed. Suppliers with a history of exporting know what paperwork is needed and how to handle shipping, which is important for international procurement.

Technical Specification Development

Clear specs keep things from getting confusing and make sure that the materials provided meet the needs of the application. It's not enough for purchase papers to just mention ASTM A358 Grade 347 or 347H; they should also list the pipe diameter, wall thickness, length requirements, end preparation (plain end, beveled for welding, threaded end), and any testing that goes beyond what ASTM requires. Find out if your situation fits into Class 1 or Class 2 (single weld without extra metal).

Make it clear what needs to be inspected and tested. Even tho ASTM A358 requires certain tests, for important uses, it may be necessary to do extra checks like positive material identification, extra corrosion testing, or mechanical property testing above and beyond the standard minimums. During the quotation phase, talk about these needs with potential suppliers to make sure they understand what is expected of them and can provide the necessary certifications.

Pricing Considerations and Order Optimization

The price of stainless steel changes depending on how much nickel and chromium cost as raw materials. Setting prices in a way that takes market volatility into account saves both buyers and sellers from big changes in prices during long procurement processes. Think about setting a fixed price for short-term deliveries and using published metal indices to change the price of long-term orders.

There are often minimum order amounts, especially for sizes or grades that aren't available very often. Working with suppliers to find the best order quantities based on when they need to be made can save you money. When you buy in bulk for multi-phase projects or set up framework deals for regular needs, you can get better prices and make sure you always have a supply.

Logistics and Delivery Timeline Management

International purchasing includes sending operations, clearing customs, and possibly producing paperwork to show that you are following the rules. Expert suppliers can help you with the right packaging, shipping methods, and paperwork to make sure that customs processing goes smoothly. Lead times depend on whether the materials are in stock or need to be made. Usually, they range from 4 to 8 weeks for standard sizes to 12 to 16 weeks for special requests or large quantities.

Clear communication rules should be set up for delivery plans, especially for projects with set building timelines. Ask for regular updates on the status of production and set up pre-shipment inspections if the project's importance requires it. Understanding the supplier's production planning and building realistic lead times into project schedules keeps the building process moving forward and avoids costly delays.

Conclusion

The exceptional pressure application suitability of ASTM A358 Grade 347 347H Class 1 Steel Pipes stems from their unique mix of mechanical strength, stable microstructure, and proven weld quality. These traits make it possible for reliable performance in tough industries, like power generation and petrochemical processing, where failure of a material can have very bad results. Niobium stabilization stops sensitization, which protects against rust in bonded parts that are exposed to high temperatures. The higher carbon content in 347H makes it stronger against creep for use in very high temperatures. Critical pressure systems need products that are reliable, and strict manufacturing standards, full quality control, and full weld inspection give that. When procurement professionals choose materials for their specific uses, they need to know these technical differences in order to balance performance needs with lifecycle costs.

FAQ

What distinguishes Grade 347 from Grade 347H in practical applications?

The main difference is the amount of carbon in the steel: 347H keeps the carbon content between 0.04% and 0.10% for better high-temperature creep strength, while standard 347 has a lower minimum carbon content to focus on general corrosion resistance. The higher creep rupture strength of 347H makes it better for uses with prolonged loads above 538°C. This makes it ideal for superheater tubes and high-pressure steam pipes. Standard 347 works well in situations with relatively high temperatures, where resistance to sensitization is more important than extreme creep strength.

Does Class 1 designation indicate seamless pipe construction?

Class 1 only includes electric fusion-welded pipes with two welds made of filler metal and a full X-ray examination. ASTM A358 only talks about welded construction and not seamless pipes. The Class 1 label guarantees the quality of the weld by fully penetrating and inspecting it. This creates a joint efficiency factor of 1.00, which lets engineers use the full design stress values when figuring out the pressure.

Is post-weld heat treatment necessary after field welding Grade 347 components?

Adding niobium makes the metal more stable, so it's usually not necessary to heat treat it after welding. Grade 347 doesn't become sensitive during welding or when it's exposed to high temperatures afterward, so it stays resistant to rust in the welded state. This feature makes it easier to work with, lowers the cost of building, and speeds up project timelines compared to grades that aren't stabilized and need to be heated to recover corrosion resistance after welding.
