How Does UNS S31803 Duplex Pipe Resist Chloride Corrosion?

UNS S31803 duplex pipe resists chloride corrosion through its balanced two-phase microstructure combining roughly equal proportions of austenite and ferrite phases. This unique composition, enhanced by chromium (22-23%), molybdenum (3%), and nitrogen content, creates a robust passive oxide film that shields the material from chloride attack. When manufactured as ASTM A789 UNS S31803 EFW pipe through electric fusion welding and properly solution annealed, the material achieves superior pitting resistance equivalent (PRE) values above 35, making it exceptionally suited for marine, offshore, and chemical processing environments where chloride exposure threatens equipment integrity and operational safety.

Understanding UNS S31803 Duplex Stainless Steel and Chloride Corrosion

Duplex stainless steel is a big step forward in materials that don't rust, because it solves problems that standard austenitic types have in places with a lot of chloride. To understand what makes this material unique, you must first understand the specific risks that chloride poses to industrial pipe systems.

What Makes Duplex Microstructure Different?

The UNS S31803 grade is resistant to chlorine because it has a uniform microstructure with about 50% ferrite phases and 50% austenite phases. This two-phase mixture has almost twice the mechanical strength of regular 316L austenitic stainless steel, but it is still very flexible. The ferritic part makes the steel very resistant to stress corrosion cracking, and the austenitic part makes it tough and easy to shape. When these phases work together, they make a stronger defense against chloride-caused failures that can happen in single-phase materials.

How Electric Fusion Welding Ensures Pipe Integrity?

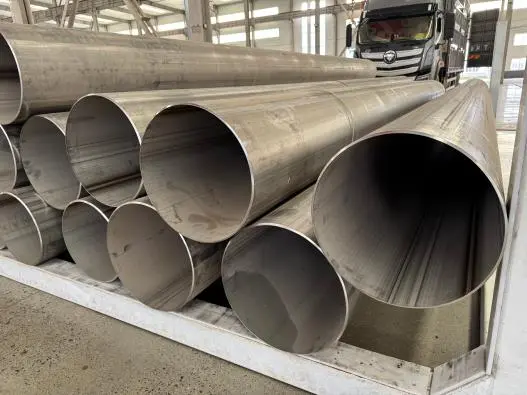

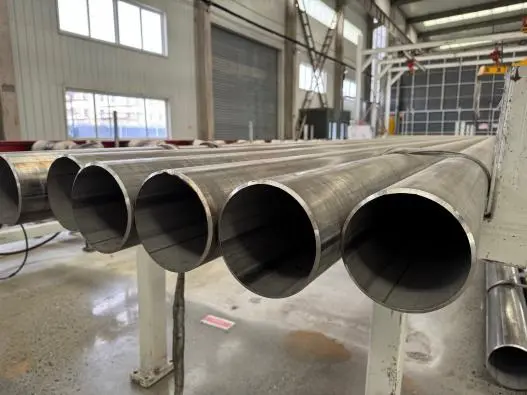

The Electric Fusion Welding method used to make pipes that meet ASTM A789 standards makes longitudinal lines that are uniform, of high quality, and suitable for pressure service. With exact energy input, the EFW process joins heavy-gauge plates together, making pipes with diameters from 114.3 mm to 2500 mm that would not be possible with smooth manufacturing. The heat-affected area goes through controlled thermal cycles while welding. After that, solution annealing at temperatures between 1020°C and 1100°C is done, and the metal is quickly quenched in water to restore the ideal phase balance and get rid of any precipitates that might make it less resistant to corrosion.

Chloride Corrosion Threats in Industrial Environments

Chloride ions get through the passive films on the surfaces of stainless steel and start attacks in specific areas that show up as pitting and crevice corrosion. About 19,000 parts per million (ppm) of chlorides are found in seawater. Streams used in chemical processing may have much higher amounts. When normal austenitic stainless steels are exposed to these conditions, especially when temperatures are above 60°C, chloride stress corrosion cracking can spread quickly through parts that are under tension. Offshore platforms, desalination plants, and pulp bleaching systems are some of the most difficult uses where the choice of material has a direct effect on safety gaps and maintenance cycles.

Mechanisms Behind UNS S31803's Resistance to Chloride Corrosion

Duplex 2205 material is very resistant to chloride because the chemistry and metallurgical processing are carefully balanced. This makes many barriers against corrosive attack.

Role of Chromium, Molybdenum, and Nitrogen

A chromium percentage of 22 to 23 percent creates a steady chromium oxide passive layer on the steel surface, which protects it from corrosion. This oxide film fixes itself when it gets damaged in oxygenated places, keeping you safe all the time. Molybdenum increases of about 3% concentrate in the passive film, making it more resistant to pitting starting in chloride solutions in particular. Nitrogen, which is present at a level of 0.14 to 0.20%, does a number of things: it keeps the austenite phase stable, makes the solid solution harder, which makes it stronger, and most importantly, it keeps the passive film stable by raising the pitting potential. The pitting resistance equivalent number (PREN = %Cr + 3.3 %Mo + 16 %N) shows how these elements work together. For UNS S31803, it is higher than 35, which means it has strong chloride resistance.

Duplex Phase Balance and Protective Layer Stability

The balanced ferrite-austenite microstructure of ASTM A789 UNS S31803 EFW pipe distributes alloying elements strategically across both phases. Chromium and molybdenum preferentially partition into the ferritic phase, while nitrogen concentrates in austenite. This partitioning creates a compositionally distinct yet synergistic structure that minimizes initiation sites for corrosion. The inherent two-phase structure exhibits differing electrochemical potentials that prevent the sustained localized attack required for pit propagation when chloride ions attempt to breach the passive film. When properly heat-treated, the phase boundaries do not become preferential corrosion pathways, as may occur in inadequately processed material.

Importance of Solution Annealing and Welding Practices

To get the most rust protection out of duplex materials, they need to be heated the right way. Solution annealing at temperatures between 1020°C and 1100°C gets rid of secondary phases that form during welding or manufacturing, such as the sigma phase, the chi phase, and chromium nitrides. These precipitates remove chromium and molybdenum from the area around them, making it more likely for rusting to happen. Reprecipitation can't happen during cooling if you quickly quench after heating. When welding, the amount of heat that goes in needs to be carefully controlled, and overalloyed filling metals with more nickel may be used to make up for the higher amount of ferrite in the fusion zone. When possible, heating with a solution after welding returns the best microstructure. Documentation, such as Welding Procedure Specifications (WPS) and Procedure Qualification Records (PQR), makes sure that the purity of the materials is maintained during building.

Comparing ASTM A789 UNS S31803 with Other Pipe Materials in Chloride Environments

To choose the best materials for chloride service pipes, you need to know how the different types and production methods affect performance. Comparative data that shows cost-performance choices is useful for procurement workers.

UNS S31803 vs. UNS S32205 Grade Distinctions

In modern standards, duplex pipes are often certified to both UNS S31803 and S32205. Higher minimum values for chromium (22.0% vs. 21.0%), molybdenum (3% vs. 2.5%), and nitrogen (0.14% vs. 0.08%) are found in the S32205 grade, which has a narrower chemistry range. These stricter requirements make sure that corrosion performance is more consistent across all production heats. When buying EFW pipes, asking for material certified to S32205 limits gives you a little more peace of mind, especially for important offshore uses. But S31803 material that is properly made usually meets S32205 chemistry, so the difference is more about how tightly the specifications are met than about fundamental changes in capability.

EFW vs. Seamless Manufacturing Considerations

ASTM A312 talks about duplex pipes that are seamless, while ASTM A789 talks about welded tube goods, such as EFW construction. In theory, seamless pipes are better for smaller diameters (under 6 inches) where wall penetrations from outside corrosion are a problem. When pipes get bigger, making smooth pipes becomes too expensive and materials are hard to come by, so electric fusion welding is the best way to go. When used correctly, modern EFW technology makes weld seams that have the same mechanical qualities as the parent material. It is possible to place the lengthwise seam away from high-stress directions during placement since the location of the seam is known. For most industrial chloride service applications with a diameter of more than 4 inches, EFW construction gives the same performance at a much lower cost.

Performance Against Carbon Steel and Austenitic Alternatives

When chloride is present, carbon steel pipes need thick corrosion limits, protective coats, or cathodic protection systems, which make them more complicated and harder to maintain. These requirements are not needed for duplex UNS S31803, which has a yield strength about twice as high as austenitic 316L (minimum 450 MPa vs. 170 MPa). Because of this, the walls can be smaller and the supports can be lighter, which lowers the overall cost of installation even though the materials cost more per unit. When compared to normal austenitic grades, duplex material doesn't crack under chloride stress corrosion, which can happen with 304 or 316 grades when they are under tension stress in chloride settings. When looking at lifecycle costs over 20 years, duplex materials are always the best choice for seawater, brackish water, and chemical services that contain chloride.

Practical Applications and Industry Use Cases of ASTM A789 UNS S31803 Duplex Pipes

Installations in the real world show that properly designed duplex pipe is reliable and saves money in a wide range of demanding industrial sectors.

Oil & Gas and Chemical Processing Installations

ASTM A789 UNS S31803 EFW pipe is extensively utilized on offshore platforms for seawater cooling systems, firewater networks, and produced water handling, all of which involve chlorides, moderate temperatures, and elevated pressures. The material withstands the corrosive environment without succumbing to the stress corrosion cracking failures that affected earlier austenitic systems. Duplex grades are employed for process piping, heat transfer tubes, and reactor cooling jackets in chemical plants handling chlorinated organics, bleaching agents, or brines. A Gulf Coast petrochemical facility reported that upgrading from 316L to UNS S31803 in a high-chloride distillation service extended piping system service life from 8 years to over 20 years, substantially reducing replacement frequency and unplanned shutdowns.

Best Practices for Installation and Fabrication

For duplex installs to go well, the materials must first be checked using Mill Test Certificates that meet the standards of EN 10204 3.1 or 3.2. For qualified procedures and the right filler metals, like ER2209 for GTAW root passes and E2209 for SMAW fill passes, welding is needed. To keep ferrite formation from going too far, interpass temperatures should stay below 150°C, and heat input should be kept between 0.5 and 2.5 kJ/mm, depending on the thickness of the wall. Backing gases that contain nitrogen or mixtures of nitrogen and argon help keep the metal phase balance in the weld just right. Post-weld solution annealing isn't always required for pipes, but it gives the best corrosion resistance in important applications. When cooling is not an option for big parts, controlling the welding process even more is needed.

Inspection Protocols for Long-Term Reliability

There are several stages of inspection that go into making sure the quality of EFW duplex pipes. Ultrasonic testing (UT) of the longitudinal weld seam finds breaks below the surface, and radiographic testing (RT) keeps a lasting record of the soundness of the weld for important uses. Using calibrated tools to test ferrite confirms that the phase balance is between 40 and 60% ferrite. For approval lots, corrosion tests with ferric chloride or critical pitting temperature tests can be chosen. During service, visual inspections are done on a regular basis to look for early signs of localized attack, and ultrasonic thickness measurements are used to keep an eye on any general corrosion rates. Traceability is possible throughout the lifespan of an object if the installation is properly documented with heat numbers, test reports, and welding records.

Procurement and Supplier Guidance for ASTM A789 UNS S31803 Pipes

To find good duplex piping, you need to pay attention to what the provider can do, how well they follow certification rules, and how they can deliver the pipe while staying within the project's price and plan.

Essential Supplier Selection Criteria

Duplex pipe suppliers with a good reputation keep certifications that show their quality management systems meet international standards. Pressure Equipment Directive (PED) compliance lets it be used in European pressure uses, while ISO 9001 certification gives you basic quality security. With TÜV certification, manufacturing processes are checked by a third party. You can be more sure that the test reports from suppliers whose testing labs are ISO 17025 certified are accurate. When looking at possible providers, make sure you see proof of these certifications and get examples from projects that had similar service conditions. When working on big projects, production capacity is important. Companies with more than one production line and an annual capacity of more than 50,000 tons can keep their delivery schedules. YOUFASS has 15 specialized production lines and more than 200 trained workers to support them. This gives them the size and knowledge to handle difficult industrial projects.

Pricing and Lead Time Considerations

The price of duplex stainless steel changes with the prices of nickel, chromium, and molybdenum, but not as much as the price of high-nickel austenitic grades. When you place an order for a large diameter pipe made with EFW, it usually takes between 6 and 10 weeks to get it delivered, depending on the size and quantity. Keeping stock plans for popular sizes at suppliers can cut down on procurement times by a large amount. Different manufacturers have different minimum order amounts. Suppliers that are flexible can handle single-pipe orders for testing or urgent fixes while also being able to scale up quickly for multi-ton projects. Heavy-wall large diameter pipes cost a lot to ship, so how close the source is to big ports or project sites is an important thing to think about when choosing one.

Quality Assurance and Documentation Package

For complete material traceability, you need more than just basic mill test certificates. Material Test Reports (MTR) that meet EN 10204 3.1 standards give information from the steel mill about the chemical make-up and mechanical properties. Third-Party Inspection (TPI) records show that measurements were checked and tests were done in front of independent testers. Welding Procedure Specifications list the correct factors that must be used during EFW construction, and Manufacturing Process Sheets keep track of each pipe as it goes through the different steps of production. Ultrasonic and x-ray test records show that the weld is strong enough for pressure work. This paperwork helps with following the rules, meeting insurance standards, and quality checks while the job is being done. Suppliers should give these papers in both paper and digital forms, and it should be easy to find the certificates that go with the markings on the pipes.

Conclusion

Electric fusion welding is employed in the production of ASTM A789 UNS S31803 EFW pipe, which offers a balanced microstructure, optimized alloy chemistry, and controlled processing that collectively deliver exceptional chloride corrosion resistance. The two-phase ferritic-austenitic structure provides multiple defense mechanisms against pitting, crevice corrosion, and stress corrosion cracking—failure modes that commonly affect conventional materials in chemical and seawater environments. Selecting the right supplier through careful evaluation of certification compliance, complete documentation, and production scale is essential for procurement success in the chemical processing, marine, oil and gas, and other demanding industries. Duplex pipe's superior performance and extended service life justify higher material costs through reduced maintenance, fewer replacements, and more reliable operation in chloride-exposed installations.

FAQ

Can ASTM A789 UNS S31803 EFW pipe be used in seawater cooling systems?

Duplex 2205 lines work great in saltwater and can handle temperatures ranging from room temperature to 90°C, which is popular for cooling water uses. The material's PRE above 35 gives it a good defense against pitting in natural seawater. Paying attention to the right way to weld and, if desired, solution heating increases the long-term dependability.

How does duplex stainless steel compare to 316L in chloride environments?

UNS S31803 is better than 316L austenitic steel at resisting chloride stress corrosion cracks and has about twice the yield strength. 316L may be enough for low-chloride and low-stress situations, but duplex types offer more safety in saltwater, brackish water, and concentrated chloride solutions, where 316L is less reliable.

What welding considerations apply to EFW duplex pipes during field installation?

Field welding needs to be done by trained people using the right filler metals, such as ER2209. Keeping the interpass temperatures below 150°C, controlling the amount of heat that goes in, and using shielding gases all help to keep corrosion resistance high. Ferrite measurements of finished welds show that the right phase balance was kept.
