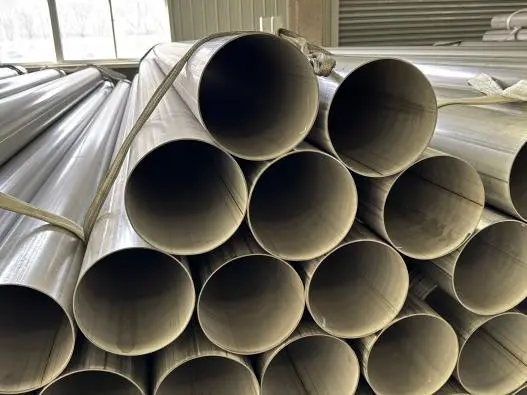

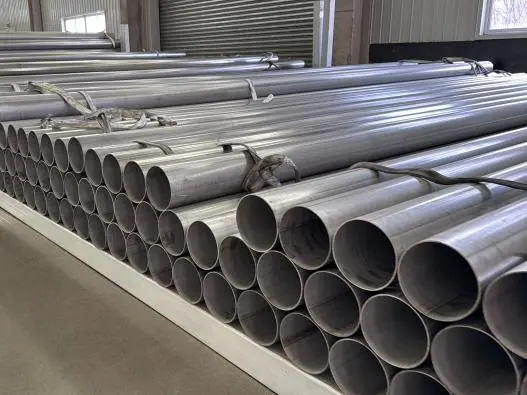

EN 10217-7 1.4301 Welded Stainless Steel Pipes for Hygienic Applications

EN 10217-7 1.4301 Welded Stainless Steel Pipes is the European standard for welded circular stainless steel tubes designed for pressure service. Grade 1.4301—the direct equivalent of AISI 304—is an austenitic chromium-nickel alloy that delivers proven corrosion resistance, consistent weld integrity, and compliance with the Pressure Equipment Directive (PED). These pipes address real procurement pain points: pressure-safety risk in fluid transport, premature pipe failure in mildly aggressive media, and the need for verifiable documentation in regulated industries. From food processing lines to chemical piping systems, this grade is a dependable choice for engineers and procurement teams worldwide.

Understanding EN 10217-7 1.4301 Stainless Steel Pipes

Chemical Composition and Grade Overview

About 18% of grade 1.4301 is chromium, 8–10.5% is nickel, and carbon is kept below 0.07%. This mix creates an inactive oxide layer that keeps the metal from rusting in water, organic acids, and weak chemicals. YOUFA also offers austenitic grades that are similar and meet the same standard. These include 1.4306, 1.4307, 1.4401, 1.4404, 1.4541, 1.4539, and 1.4571. This lets procurement teams choose the right alloy for the job without having to switch suppliers.

Mechanical Properties and Heat Treatment

EN 10217-7 says that 1.4301 pipes must be delivered after being solution-annealed. When you anneal something, you get rid of carbide precipitates, restore corrosion resistance at the weld zone, and achieve a tensile strength of at least 205 MPa and a range of 515 to 720 MPa. Engineers use these technical standards to figure out the right pipe sizes for pressure service, and mill test reports (MTR/MTC 3.1/3.2) make sure they are correct for each batch.

Manufacturing Process and Documentation

YOUFA's process for making welded pipes is carefully planned out: strip preparation, high-frequency or TIG welding, post-weld heat treatment, straightening, and hydrostatic or non-destructive testing. Each batch comes with all the necessary paperwork, including WPS/PQR, MPS, UT/RT reports, and TPI certificates. This makes it easy to do compliance audits. With ISO 9001, PED, ISO 17025 lab accreditation, and TÜV certification, every package can be tracked from the raw materials to the final review by a third party.

Performance and Application in Hygienic Environments

Corrosion Resistance in Sanitary Service

In the processing of food, drinks, and medicines, EN 10217-7 1.4301 Welded Stainless Steel Pipes work well against weak acids, alkaline cleaners, and standard CIP (Cleaning-in-Place) chemicals when the temperature is mild. After being mechanically cleaned, the passive film grows back, keeping the surface clean for long service cycles. Higher chloride levels or temperatures above 60 °C should call for grades like 1.4401 (316) or 1.4404 (316L), which have a better PREN number and should be used instead.

Surface Finish Options and Hygiene Compliance

The surface finish has a direct effect on how well bacteria stick to it and how well it cleans. When it comes to clean plumbing, these are the main finish choices:

• 2B finish (Ra ≤ 0.8 µm): Cold-rolled, lightly skin-passed. Adequate for general food-grade piping where internal cleanliness is maintained by flow velocity and CIP cycles. Cost-effective for large-diameter runs.
• Pickled and annealed finish: Standard delivery condition for YOUFA's welded pipes. Removes heat tint and oxide scale from the weld zone, restoring chromium-rich passive layer uniformity across the pipe bore and OD surface.
• Electropolished or mechanically polished (Ra ≤ 0.4 µm): Specified in pharmaceutical and biotech applications where 3-A Sanitary Standards or EHEDG guidelines apply. Reduces surface roughness to a level that prevents microbial attachment.

Each finish choice meets a different level of cleaning. Choosing the right surface treatment at the start lowers the cost of cleaning over time and the risk of contamination during production.

Cross-Industry Application Scope

Welded 1.4301 stainless steel pipes are used for more than just food and medicine. They are also used for water treatment pressure lines, HVAC cooling loops, and low-pressure chemical transfer in factories. In new energy uses like hydrogen production skids and fuel cell cooling circuits, they can handle deionized water and mildly alkaline electrolytes, which makes them a good choice for pipes where carbon steel would rust quickly.

Comparing EN 10217-7 1.4301 Pipes with Alternatives

1.4301 vs. 1.4401: Choosing the Right Grade

The main difference between these two types is the amount of molybdenum they contain. When you add 2–2.5% molybdenum to Grade 1.4401, its PREN goes from about 18 to 25, which makes it much more resistant to pitting in media that contain chloride. 1.4301 is a good value for money and works well for mild-environment sanitary service like dairy lines, bottled water systems, or normal CIP loops. Even though it costs more, 1.4401 or 1.4404 is the better choice for installs near the coast, brine service, or medicinal water-for-injection systems.

Welded vs. Seamless Pipes Under EN 10217-7

EN 10217-7 is the standard for welded pipes, and EN 10216-5 is the standard for smooth steel tubes. For diameters bigger than 25.4 mm, EN 10217-7 1.4301 Welded Stainless Steel Pipes are more consistent in size, can be made faster, and cost less per meter. For ultra-high-pressure uses, seamless pipes have a slight edge when it comes to uniform wall thickness. Welded construction according to EN 10217-7 gives the same performance at a lower price for transferring clean fluids at normal working pressures, which are usually less than 40 bar.

Cost-Benefit Considerations for Large Orders

When procurement teams balance quality and budget, they should look at the total cost over the whole lifespan, not just the unit price. YOUFA's welding pipes come in a range of ODs and wall thicknesses, from 10.3 mm to 2,500 mm and 0.8 mm to 40 mm, and the minimum order quantity is just one pipe. For stocked sizes, delivery from Tianjin Port can happen as quickly as seven days, which lowers the risk to the project schedule and the cost of keeping inventory.

Procurement Guide: Sourcing EN 10217-7 1.4301 Stainless Steel Pipes

Verifying Supplier Certification

As a minimum, suppliers of 1.4301 welded pipes that you can trust must have ISO 9001 quality management certification. For uses that need to follow PED rules for pressure, the provider must also have a valid PED module certificate and a testing lab that is ISO 17025-accredited. A third level of quality is added by TÜV approval. YOUFA has all four credentials, and you can get a copy of their most recent certificates before you place an order.

Documentation Requirements for B2B Buyers

When buying things from other countries, procurement teams should ask for these papers to be sent as a standard package:

• MTC/MTR 3.1 or 3.2: Mill test report with chemical composition and mechanical test results, issued by the manufacturer or an independent inspector, respectively.
• WPS/PQR: Welding procedure specification and procedure qualification record, confirming that the welding process meets EN 10217-7 requirements.
• UT/RT reports: Ultrasonic or radiographic test reports verifying weld-seam integrity on production batches.
• TPI certificate: Third-party inspection certificate from an approved body such as Bureau Veritas, SGS, or TÜV, added when project specifications require independent verification.

Buyers are protected during receiving inspections and regulatory audits when this package of paperwork is in place before shipment.

Logistics and Packaging for Global Shipment

YOUFA ships EN 10217-7 1.4301 Welded Stainless Steel Pipes in wooden boxes that can have a steel frame added for extra support. The boxes are held together with hexagonal binding and woven bags. This keeps the finish on the surface safe during ocean freight, which is important for pickled and annealed pipes because damage to the finish can cause rejection at the destination. You can choose between plain ends and angled ends, which match the downstream weld-fit-up needs on site.

Technical Support and Quality Assurance for 1.4301 Welded Pipes

Welding Procedures and Inspection Standards

To avoid sensitization, which is the buildup of chromium carbides at grain boundaries that makes the metal less resistant to corrosion, welding 1.4301 under EN 10217-7 requires controlled heat input. To protect the inner joint root, YOUFA's WPS says that TIG or plasma welding must be used with inert gas back-purging. The grain is fixed by heating in a solution after welding at 1,050–1,120 °C. As a minimum, each batch goes through hydrostatic pressure testing. UT or RT testing is used when project requirements call for a weld-seam volumetric examination.

Batch Traceability and Quality Records

Each pipe has a heat number that can be linked to the proof of raw materials. The heat number is linked to the welding operator, the inspection results, the heat treatment furnace chart, and the final check of the dimensions in the production records. This chain of traceability lets buyers quickly fix any problems that are found after installation, without having to stop the whole project.

Repair and Compliance Maintenance

Controlled grinding can fix small surface flaws on 1.4301 pipes as long as the wall thickness stays within the EN 10217-7 tolerance. Weld fixes need to be re-qualified against the original WPS and reviewed again before the pipe can be put back into the certified stock. YOUFA keeps track of all repair events in the batch record, which means that the certification stays valid throughout the process.

Conclusion

Welded Grade 1.4301 stainless steel pipes that meet EN 10217-7 1.4301 Welded Stainless Steel Pipes standards have a proven mix of resistance to corrosion, ability to withstand pressure, and a clean surface for use in food, medicinal, chemical, water treatment, and new energy applications. When you choose a certified supplier with clear documentation, a wide range of diameters, and quick delivery, you directly lower the risk of procurement and the pressure on the project schedule. YOUFA was established in 2017 and has 15 production lines that make 50,000 tons of goods every year. It has ISO 9001, PED, ISO 17025, and TÜV certifications and includes all the necessary paperwork for every shipment.

FAQ

What is EN 10217-7 1.4301 pipe exactly?

EN 10217-7 1.4301 pipe is a welded round stainless steel tube made to the European standard for pressure pipes. It is made from grade 1.4301 steel, which is the same as AISI 304. It's made to work under pressure in corrosive or high-temperature conditions, and it has to be solution-annealed, with mechanical and chemical test results that can be checked.

Is 1.4301 suitable for hygienic applications?

Yes, in places that aren't too acidic or too basic. When chloride levels are low, it works well in systems that process food, make drinks, treat water, and clean pharmaceuticals. Grade 1.4401 or 1.4404 is the best choice for systems that handle high chloride levels or pharmaceutical water-for-injection.

What certifications should a supplier hold?

At the very least, ISO 9001 approval for quality control and PED certification if the pipes are going to be used in pressure equipment in the EU or UK. ISO 17025 lab accreditation and TÜV certification give you even more confidence in the accuracy of test results and the consistency of manufacturing. Before you place an order, you should always ask for up-to-date, legal certificates.

What documents should I request with my order?

Ask for inspection results on MTC/MTR (3.1 or 3.2), WPS/PQR, UT/RT, and a TPI certificate if a third-party check is needed. These papers help with inspections, following the rules, and getting ready for a project audit.

What is the minimum order quantity?

YOUFA's minimum order quantity (MOQ) is just one pipe, so it can be used for testing samples, placing repair orders, and meeting the needs of small-batch projects without having to commit to full pallet amounts.

Get a Quote from YOUFA — Trusted EN 10217-7 1.4301 Welded Stainless Steel Pipes Supplier

In as little as seven days from Tianjin Port, YOUFA can deliver certified EN 10217-7 1.4301 Welded Stainless Steel Pipes with full documentation. The OD ranges from 10.3 mm to 2,500 mm. We help buyers all over the world and in the USA because we are certified by ISO 9001, PED, ISO 17025, and TÜV. Visit youfass.com or email our team at info@youfass.com to get a price or talk about special sizes right now.
