Differences between welded and seamless ASTM A312 pipes
Should you choose soldered or seamless stainless steel pipes for your industrial plumbing system? This can make or break the performance and cost of your project. Pipes made to ASTM A312 standards, which can be either seamless or welded, are used in petroleum plants, power plants, and chemical processing units to handle high pressure and corrosion. On the other hand, ASTM A312 welded stainless steel pipes are designed to meet the specific needs of applications that require reliable corrosion resistance at a reasonable cost. The main difference is how they are made: seamless pipes are produced without any joints, which gives them uniform wall thickness and higher pressure ratings; welded pipes, on the other hand, are made from flat-rolled steel with longitudinal welds, which makes them more cost-effective and available in a wider range of sizes. By knowing these differences, procurement teams can match pipe specs with practical needs, which protects both efficiency and the company's budget.
|
|
|

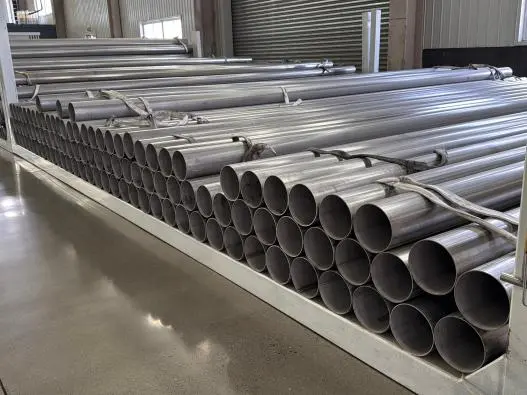

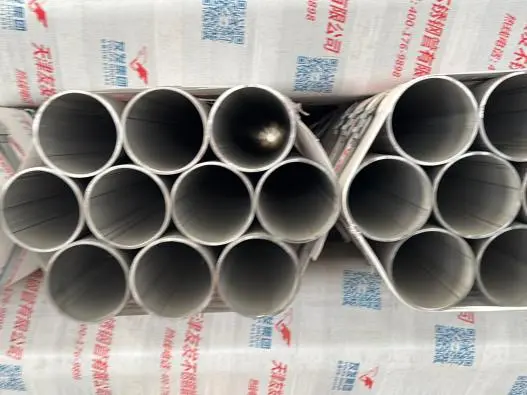

Understanding ASTM A312 Stainless Steel Pipes
High-temperature and hazardous austenitic stainless steel lines must meet ASTM A312. The following kinds are included in this standard: TP304, TP304L, TP316, TP316L, TP316Ti, TP317/TP317L, TP321/TP321H, TP347/TP347H, TP309S/TP309H, and TP Seamless and welded manufacturing are included. Each grade has a chemical composition that suits its surroundings. TP316L, with low carbon and molybdenum, performs well in chloride-rich marine environments, whereas TP321H doesn't rust and is stable at high temperatures.
The requirement requires solution annealing at least 1900°F and water cooling to prevent carbide precipitation and corrosion. The diameters are NPS 1/8" to 48" (DN6 to DN1200), and the wall thicknesses are Schedule 5S to Schedule XXS. These ranges support modest to high pressures. Pickled, bright annealed, polished, and passivated finishes may suit hygienic food processing, pharmaceutical manufacturing, and attractive architectural demands.
Manufacturing Methods Define Performance Profiles
Solid cylinder billets are heated and perforated by rotation or extrusion to make ASTM A312 seamless pipes. Draw and roll the billets to their ultimate sizes without bonding. This approach eliminates weld gap weak points by uniformly graining the pipe wall. Seamless pipes provide superior tensile strength, fatigue resistance, and constant pressure ratings. They are excellent for high-pressure power boilers, heat exchangers, and fuel cell systems because of their properties.
ASTM A312 Welded Stainless Steel Pipes are produced from flat stainless steel coils. These coils are formed into cylinders and bonded without filler metal using automated TIG or plasma welding. Modern manufacturing includes precise heat input control and post-weld heat treatment to match base metal weld quality. Welded pipes have lower pressure ratings due to inefficient weld joints. Better quality control procedures, like 100% X-ray inspection, allow certain welded items to operate as well as seamless pipes at a lesser cost. Welded designs are cost-effective and safe for large diameter usage in water treatment, desalination, and low- to medium-pressure chemical transfer.
Core Differences Between Welded and Seamless ASTM Pipes
There are differences in how welded and seamless pipes are made that lead to measured performance differences that have a direct effect on their fit for use, lifecycle costs, and safety margins. When buyers are aware of these differences, they can make the best choices based on how things actually work, not on old ideas.
Structural Integrity and Pressure Ratings
The microstructure of seamless pipes is uniform throughout the cross-section. They lack the heat-affected zone and gaps of welded items. This allows for increased tension and pressure. Schedule 40 seamless TP316L pipes can bear 15-20% greater pressure than welded tubes of the same size. This cushion protects high-pressure hydrogen production equipment and heat exchanger tubes from recurrent thermal stress.
Production advances have transformed welded pipes. HFI and laser welding produce tiny, straight, non-deforming weld lines. Ultrasonic or radiographic inspection and 100% non-destructive testing provide modern welded ASTM A312 pipes with weld joint efficiency ratings of 0.85 to 1.0, greater than seamless choices. This performance fulfills water distribution, building constructions, and moderate-pressure chemical process design criteria. It saves 20-40% on seamless versions.
Corrosion Resistance and Surface Quality
Both welded and seamless ASTM A312 pipes employ the same solution annealing heat treatment; they should be rust-resistant. There are slight variances in real-world care. Because seamless lines have no weld tensions, the grains are all oriented the same, and corrosion behavior is constant throughout the surface. For applications such as making medical devices or semiconductor chemical delivery systems, where precision pollutant removal is required, ASTM A312 Welded Stainless Steel Pipes can still meet performance needs when properly processed, although the consistency advantage of seamless pipes is particularly helpful.
Pipe weld seams must be addressed carefully. Welding creates tiny structural changes and sensitization zones where chromium carbide may develop and reduce rust resistance. These concerns disappear with proper post-weld heating, although quality control is crucial. Pickled and passivated surfaces remove weld discolouration and increase chromium oxide protection. This protects the metal against corrosion nearly as well as base metal. Extra rust testing of weld regions ensures product durability for electrolytic cell usage in metallurgy or acid handling in chemical plants.
Dimensional Accuracy and Customization Flexibility
Cold drawing seamless pipes improves outer diameter and wall thickness accuracy. The wall thickness error for seamless ASTM A312 pipes is typically ±10% to ±12.5%. This provides more precise material weight and pressure numbers. Making compact heat exchanger bundles or high-efficiency boiler systems requires this level of precision since every millimeter of space and kilogram of weight impacts performance.
ASTM A312 Welded Stainless Steel Pipes are more versatile and may be any length or thickness. Seamless manufacturing can only create 24" pipes due to machine restrictions. However, welded methods may generate 48-inch pipes and more. This property allows major water infrastructure projects, industrial cooling systems, and chemical transport when bigger, smoother pipes would cost too much or take too long to produce. Making welded pipes in custom lengths without waste reduces project costs for non-standard diameters.
Cost-Performance Trade-offs in Procurement
Soldered and seamless ASTM A312 pipes cost different amounts since they are harder to produce and require better materials. Seamless pipes cost 30-60% more than soldered pipes of the same diameter because of the energy costs, scrap rates, and specific equipment. This pricing structure simplifies selection when application criticality, pressure, or regulatory constraints necessitate the greatest dependability. This might be used to cool nuclear power plants, manage flight fluids, or distribute high-purity gases in semiconductor manufacturing.
Welded pipes are ideal for applications that must remain under budget without losing performance. A welding TP304L pipe used in a building's water distribution system or a food processing plant's cleaning-in-place circuit has the same anti-corrosion and hygienic properties as a seamless pipe but costs less. Long-term, large-diameter installations may save tens of thousands of dollars on every project. Smart procurement methods employ welded lines for the proper tasks and seamless standards for demanding service situations.
Procurement Considerations for ASTM A312 Pipes
It's not enough to just compare detailed datasheets when you're looking for stainless steel pipes. To do great procurement, you need to look at the skills of the suppliers, their quality processes, the logistics of the job, and the total cost of ownership over the lifecycle of the asset. These things separate great projects from mistakes that cost a lot of money.
Supplier Qualification and Quality Assurance
Choosing a business with high quality control affects product reliability and project risk. First, seek ISO 9001-certified merchants to verify quality methods. You should also investigate specialized accreditations. PED certification verifies that your pipes fulfill European pressure-bearing safety requirements. If your pipes are used in EU-marketed equipment or projects involving numerous nations that need uniform clearances, this is crucial.
The ISO 17025 laboratory certification confirms that the supplier has a separate testing facility with calibrated gear and qualified people to correctly verify products. This capability speeds up optical emission spectroscopy for chemical composition analysis, mechanical testing for tensile and yield strength confirmation, and ASTM A262 practice E sensitization for intergranular rust evaluation. YOUFA has all these certifications and TÜV clearance. Our clients get comprehensive material test certificates (MTC 3.1/3.2) and third-party inspection (TPI) coordination for transparency.
Documentation and Traceability Requirements
Industrial applications must increasingly monitor commodities such as ASTM A312 Welded Stainless Steel Pipes from steel production to installation. Find suppliers that can supply welding procedure specifications (WPS), procedure qualification records (PQR), and manufacturing process sheets (MPS) with production process steps. Radiographic and ultrasonic testing (UT) reports verify internal soundness and weld quality for aviation and power-generating applications.
This documentation environment helps auditors during regulatory inspections uncover the main cause of unexpected issues. When purchasing high-specification ASTM A312 items, ensure the supplier maintains digital records with heat number tracking linking each pipe to its raw material chemistry and manufacturing factors. This kind of traceability is standard for high-tech manufacturers, but not usually for lower-level suppliers.
Lead Time, Minimum Order Quantities, and Inventory Management
You must be honest about your suppliers' manufacturing capabilities and flexibility to match supply costs and project deadlines. Seamless pipe production takes 8-12 weeks from order to delivery since billet heating, piercing, rolling, and heat treatment proceed sequentially. Welded pipe manufacturing, including ASTM A312 Welded Stainless Steel Pipes, is quicker, with items arriving in 2-4 weeks. This makes them ideal for fast-track initiatives and just-in-time procurement.
Minimum order quantity is also required. Some producers set MOQs at tons or dozens of pieces to cover manufacturing line setup expenses. This makes prototypes, maintenance components, and tiny installations difficult. The YOUFA business model allows for one-pipe orders. Customers may receive just what they need for their projects without worrying about having too much inventory or cash in unused goods. This flexibility helps research institutions, equipment manufacturers that test new designs, and repair teams who replace faulty components.
We can always accommodate large projects thanks to our 15 specialized lines that produce 50,000 tons of products annually. Strategically situated near Tianjin Port and with outstanding transportation agreements, we offer the shortest turnaround times in our class. The port receives standard exports within 7 days after the order.
Customization Capabilities and Technical Support
Pipe sizes and designs are useful for many tasks, but unique projects typically need customization. Does your supplier provide non-standard wall thicknesses? Do they have plain ends for modest widths and beveled ends for 2-inch and larger welds? What about specialty surface treatments like electropolishing for pure pharmaceuticals or safe Ra values?
Application-Based Pipe Selection: Which to Choose?
To match pipe specifications to application needs, you need to know about operating conditions, performance goals, and cost limits. This part takes technical differences and turns them into useful selection advice for key business areas.
High-Pressure, High-Temperature Critical Service
When failure might be serious and working circumstances are difficult, seamless ASTM A312 pipes are typical. Seamless TP347H and TP321H pipes are utilized in power plant superheaters and reheaters, where steam temperatures may reach 3500 psi and pressures of 1000°F. No weld gaps and steady microstructure mean no weak places that might induce creep rupture or fatigue fractures over many heat cycles.
Similar requirements apply to hydrogen-making tools where ASTM A312 Welded Stainless Steel Pipes are used. Pipes must be predictable and not break down when hydrogen is introduced for electrolysis machines to function at high pressures. These vital systems require strong, rust-resistant seamless TP316L pipes to operate securely and long-term. Fuel cell producers need seamless design of leak-prone bipolar plate cooling circuits and hydrogen delivery manifolds.
Smooth pipe advantages are best seen in aerospace fluid control systems. Even with large cost increases, specifications prioritize flawless installs. This is due to stringent regulation, weight optimization, and exceptional reliability. The aviation industry values traceability, non-destructive testing, and material certification, which seamless pipe production can provide.
Cost-Sensitive, Moderate-Pressure Industrial Applications
For pressure ratings and cost-effectiveness, Welded ASTM A312 Stainless Steel Pipes are an excellent option. City or industrial process water treatment facilities should employ welded TP304 and TP316L pipes since they last longer and don't rust. They're cheaper to install than smooth pipes. Water infrastructure has 12–36-inch widths, making welding a cheap and practical manufacturing process.
Chemical processing companies often employ welded stainless steel pipes to transport dangerous liquids via low-pressure and air systems. Using the correct grades and surface treatments, welded tank farm pipes, gravity drain lines, and vent systems are dependable. To minimize design margins and account for weld joint efficiency factors, pressure and temperature predictions must be accurate.
Food and drink manufacturing industries have long employed welded clean piping. Modern mechanized welding with the correct pickling and passivation procedures produces clean, smooth interior surfaces for cleaning-in-place. In brewing, pharmaceutical production, and cheese processing, welded TP316L pipes are used for cleanliness but low pressure.
Specialized Requirements in Electronics and Medical Devices
Medical device manufacturers must consider biocompatibility and purity for implanted parts and surgical instruments. Precision and traceability are crucial when machining implant pieces using seamless TP316L pipes. Without weld gaps, post-machining inspection is simpler, and quality control rejections are smaller.
However, welded ASTM A312 pipes are utilized in hospital and lab medical gas distribution systems, where cleanliness is less critical than purity. Professionally constructed and certified welded pipes satisfy requirements and are affordable for building infrastructure needs.
Conclusion
Whether to use welded or seamless ASTM A312 Welded Stainless Steel Pipes depends on how well the production qualities match the needs of the application and the cost of the project. For high-stress, important uses where dependability is worth the extra cost, seamless pipes offer higher pressure ratings, a more uniform microstructure, and reliable performance that can be predicted. Smart procurement plans use each type in the right way: seamless for harsh environments in power generation, aircraft, and high-pressure chemical processing; welded for low-cost infrastructure, moderate-pressure industrial systems, and large-diameter applications. To be successful, you need to work with qualified providers who can offer full certifications, technical know-how, and flexible order processing that fits your project's requirements and timeline.
FAQ
Are ASTM A312 welded stainless steel pipes strong enough for industrial applications?
Yes, ASTM A312 welded stainless steel pipes are widely used in industrial systems and can meet the performance requirements of many applications. With modern manufacturing methods such as automated TIG or laser welding, combined with post-weld heat treatment and full non-destructive testing, welded pipes can achieve high weld integrity and reliable mechanical properties. While they may not match seamless pipes in extreme high-pressure or critical service environments, they are more than sufficient for moderate-pressure systems such as water treatment, chemical processing, and general industrial piping.
What is the main cost difference between welded and seamless ASTM A312 pipes?
The cost difference mainly comes from the manufacturing process. Seamless pipes require more complex production steps, including billet piercing and multiple rolling stages, which increase energy use and material waste. As a result, seamless pipes are typically 30–60% more expensive than welded pipes of the same size and grade. Welded pipes, produced from stainless steel coils, offer a more efficient and cost-effective solution, especially for large-diameter or long-distance piping systems where budget control is a key consideration.
How does solution annealing heat treatment affect the performance of welded pipes?
Solution annealing at temperatures above 1900°F breaks down the chromium carbides that form during welding. This makes the metal's rust protection almost as good as that of base metal. This heat treatment evens out the microstructure across joint gaps and heat-affected areas. This stops sensitization, which could lead to intergranular corrosion. Rapidly quenching the material in water after annealing stops carbide from re-forming while it cools, making it more resistant to stress corrosion cracking and general rust in harsh settings. With the right heat treatment, soldered pipes can be turned from possibly weak parts into reliable, long-lasting assets.
