Compare the welding characteristics of ASTM A312 GR TP316Ti versus 316L pipe

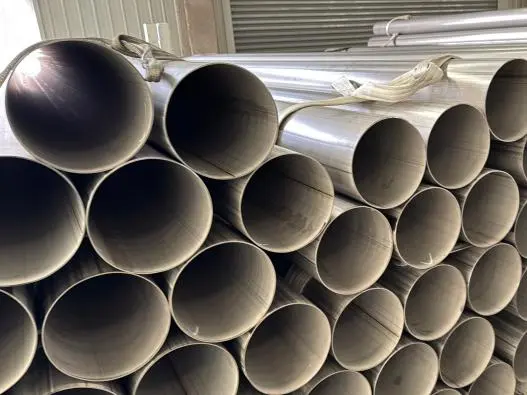

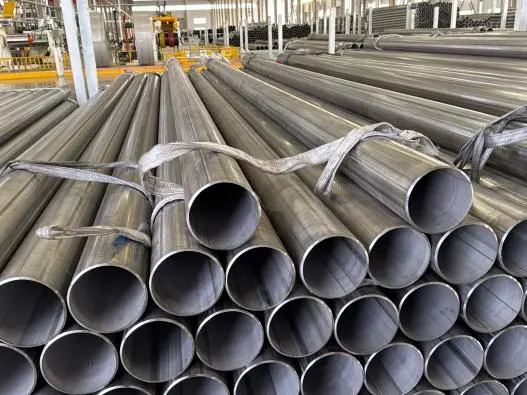

When it comes to fabricating high-performance stainless steel piping systems, choosing between TP316Ti and 316L grades often hinges on welding behavior and post-weld corrosion resistance. The ASTM A312 GR TP316Ti Stainless Steel Pipes feature titanium stabilization that mitigates carbide precipitation during thermal cycling, making them particularly suitable for elevated temperature services where intergranular corrosion poses a threat. In contrast, 316L stainless steel pipes rely on ultra-low carbon content to reduce sensitization, offering ease of fabrication and excellent general corrosion resistance. Understanding how these metallurgical differences translate into practical welding outcomes enables procurement managers, process engineers, and project contractors to make informed sourcing decisions that balance fabrication efficiency, durability, and total cost of ownership across power generation, chemical processing, and automotive manufacturing applications.
|
|
|
Introduction
Material selection for welded stainless steel piping systems directly impacts operational reliability and maintenance intervals. Both ASTM A312 GR TP316Ti Stainless Steel Pipes and 316L stainless steel pipes serve critical roles in industries demanding robust corrosion resistance and structural integrity under challenging service conditions. Titanium-stabilized TP316Ti delivers high-temperature stability by preventing chromium carbide precipitation at grain boundaries, safeguarding weldments from intergranular attack in environments such as phosphoric acid handling or high-temperature exhaust systems. Meanwhile, 316L leverages its carbon content below 0.03% to minimize sensitization risk during welding, reducing the need for post-weld heat treatment in many applications. This comparison explores the distinct welding characteristics of these two grades, examining heat-affected zone behavior, filler metal compatibility, and post-weld performance metrics. By clarifying the practical implications of titanium stabilization versus low-carbon composition, we equip engineering teams and sourcing professionals with actionable insights to optimize material specifications, fabrication workflows, and lifecycle costs in global B2B procurement scenarios.
Overview of ASTM A312 GR TP316Ti and 316L Stainless Steel Pipes
The metallurgical foundations of TP316Ti and 316L stainless steel pipes differ in composition and resulting phase stability, directly influencing their welding behavior and service suitability.
Chemical Composition and Stabilization Mechanisms
ASTM A312 GR TP316Ti Stainless Steel Pipes, TP316Ti contains Chromium (16.0-18.0%), Nickel (10.0-14.0%), Molybdenum (2.0-3.0%), and Titanium calculated as 5×(C+N) minimum to 0.70% maximum. This titanium addition preferentially forms stable TiC rather than chromium carbides, preserving the passive chromium oxide layer at grain boundaries even after extended exposure to temperatures between 425°C and 815°C. The 316L grade achieves sensitization resistance through carbon restriction below 0.03%, avoiding carbide formation entirely during thermal cycles. Both grades exhibit austenitic microstructures at room temperature, providing excellent formability and toughness.
Mechanical and Thermal Properties
TP316Ti demonstrates a minimum tensile strength of 515 MPa and yield strength of 205 MPa, with thermal conductivity around 16.3 W/m·K at 100°C. The 316L grade offers comparable mechanical properties—tensile strength typically 485-690 MPa—with slightly superior thermal conductivity due to lower alloy content. Thermal expansion coefficients remain similar at approximately 16-17 μm/m·K, ensuring dimensional compatibility in multi-material assemblies. The Pitting Resistance Equivalent Number (PREN) for both grades exceeds 24, indicating robust localized corrosion resistance in chloride-bearing environments.
Application Contexts
ASTM A312 GR TP316Ti Stainless Steel Pipes find widespread use in heat exchanger tubes for chemical reactors, petroleum refining hydrocracker units, and marine exhaust systems where thermal cycling and acidic condensates demand resistance to intergranular corrosion. The 316L grade dominates pharmaceutical processing, food-grade fluid transport, and semiconductor cleanroom piping, where ease of welding, bright annealing, and ultra-clean surface finishes justify its selection. Both grades conform to ASTM A312 specifications, available in seamless, welded, and heavily cold-worked configurations from NPS 1/8" to 48" with wall thicknesses from Schedule 5S to XXS, supporting diverse engineering requirements across power generation, automotive battery cooling, and precision electronics manufacturing.
Welding Characteristics of ASTM A312 GR TP316Ti
Titanium stabilization profoundly influences weld metal solidification, heat-affected zone microstructure, and long-term corrosion performance in TP316Ti piping systems.
Titanium Stabilization and HAZ Behavior
In ASTM A312 GR TP316Ti Stainless Steel Pipes, during welding thermal cycles, the heat-affected zone adjacent to the fusion line experiences temperatures sufficient to precipitate chromium carbides in unstabilized grades. In TP316Ti, titanium reacts preferentially with carbon and nitrogen, forming TiC and TiN particles that prevent chromium depletion at austenite grain boundaries. This mechanism maintains a protective chromium oxide film, effectively eliminating intergranular corrosion risk in the HAZ even without post-weld solution annealing. Testing per ASTM A262 Practice E confirms resistance to sensitization after welding, a critical advantage in heat exchanger fabrication and chemical processing piping, where post-weld heat treatment may be impractical.
Recommended Welding Procedures
Gas Tungsten Arc Welding (GTAW/TIG) and Gas Metal Arc Welding (GMAW/MIG) deliver optimal results with TP316Ti materials. Preheat temperatures typically remain between 50-100°C to minimize thermal gradients and reduce residual stress. Interpass temperatures should not exceed 150°C to prevent excessive HAZ grain growth. Matching filler metals such as ER316Ti or AWS A5.9 equivalents ensures compositional compatibility and maintains titanium stabilization throughout the weld deposit. Backing gases of argon or argon-helium mixtures protect root passes from oxidation, preserving corrosion resistance in single-sided butt welds.
Challenges and Mitigation Strategies
In welding scenarios involving materials such as ASTM A312 GR TP316Ti Stainless Steel Pipes, titanium's strong oxide-forming tendency can result in surface contamination if shielding gas coverage proves inadequate. Welders must maintain consistent gas flow rates and trailing shields on completed passes. Hydrogen pickup from moisture or hydrocarbon contamination can induce porosity; strict pre-weld cleaning with acetone or alcohol and low-hydrogen electrode storage protocols mitigate this risk. Hot cracking susceptibility remains low due to the austenitic microstructure, but rapid cooling rates in heavy sections may cause microfissuring. Controlled heat input—typically 0.8-1.5 kJ/mm for TIG processes—balances penetration with microstructural refinement.
Welding Characteristics of ASTM A312 316L Stainless Steel Pipes
The ultra-low carbon content of 316L stainless steel simplifies fabrication workflows while maintaining robust post-weld corrosion resistance.
Austenitic Stability and Low-Carbon Advantages
With carbon restricted below 0.03%, 316L exhibits minimal carbide precipitation across welding thermal cycles, eliminating the primary mechanism for sensitization-induced intergranular corrosion. In comparison, ASTM A312 GR TP316Ti Stainless Steel Pipes also demonstrate strong resistance to carbide precipitation, as titanium stabilisation ties up carbon and enhances performance in higher-temperature welding environments. This characteristic permits welding without mandatory post-weld heat treatment in most applications, reducing fabrication time and energy costs. The stable austenitic phase from room temperature through elevated service conditions ensures consistent mechanical properties and corrosion resistance. Welded 316L pipe maintains ductility and impact toughness comparable to base material, supporting applications with cyclic loading or vibration, such as automotive battery cooling loops and petrochemical transfer lines.
Welding Procedures and Post-Weld Treatments
ASTM A312 GR TP316Ti Stainless Steel Pipes typically employ standard GTAW and GMAW processes, accommodating 316L with filler metals ER316L or ER308L, depending on dilution ratios and desired ferrite content. Preheat requirements remain minimal—often ambient temperature for sections below 25 mm thickness—streamlining production schedules. Interpass temperatures below 150°C prevent excessive grain growth while maintaining productivity. Post-weld passivation treatments using nitric-hydrofluoric acid solutions restore the passive chromium oxide layer on heat-tinted surfaces, critical for pharmaceutical and food processing installations. Pickling and bright annealing options deliver sanitary finishes meeting stringent cleanliness standards in semiconductor and medical device manufacturing.
Common Welding Issues and Troubleshooting
Hot cracking, though rare in austenitic stainless steels, can occur in highly restrained joints or with excessive dilution from carbon steel backing bars. Maintaining weld metal ferrite numbers between 4-8 FN through controlled filler selection mitigates this risk. Distortion management requires proper fixturing and symmetrical welding sequences, particularly in thin-wall tubing below Schedule 10S. Lack of fusion defects arise from insufficient heat input or improper joint preparation; ultrasonic testing per ASTM A312 requirements verifies weld integrity. Porosity from contaminated shielding gas or inadequate purging of root sides necessitates strict gas purity monitoring—99.995% argon minimum—and documented purge procedures.
Direct Comparison: ASTM A312 GR TP316Ti vs 316L Welding Properties
Evaluating these grades side-by-side reveals nuanced trade-offs in weld performance, fabrication efficiency, and lifecycle considerations.
Corrosion Resistance After Welding
Weld Joint Strength and Fatigue Performance
Tensile testing of welded TP316Ti joints demonstrates strength values meeting or exceeding base metal specifications—515 MPa minimum—with ductility retention above 35% elongation. Fatigue resistance under cyclic loading benefits from refined HAZ microstructure and the absence of carbide-induced crack initiation sites. Welded 316L exhibits comparable static strength and fatigue life in room-temperature applications, with reduced performance margins in high-temperature cyclic service where creep mechanisms become significant. Both grades achieve excellent low-temperature toughness, maintaining Charpy V-notch impact values above 100 J at -40°C in properly welded joints.
Procurement and Supply Chain Considerations
ASTM A312 GR TP316Ti Stainless Steel Pipes material costs typically exceed 316L by 8–15% due to titanium alloying and specialized mill processing requirements. Lead times for titanium-stabilized grades may extend 2–4 weeks beyond standard 316L stock availability, impacting project schedules. However, eliminating post-weld heat treatment reduces fabrication labor and energy costs, potentially offsetting material premiums in large-scale projects. Supply reliability varies regionally; 316L enjoys broader global availability with multiple certified mills, whereas TP316Ti sourcing may require qualification of specialized suppliers. Minimum order quantities reflect these dynamics—YOUFA maintains MOQ flexibility down to single pieces for both grades, supporting prototype development and small-batch production alongside high-volume industrial contracts.
Selecting the Right Stainless Steel Pipe for Your Welding Needs
Strategic material selection aligns technical performance with operational priorities and commercial constraints.
Application-Driven Selection Criteria
Operating temperature profiles guide primary material choice. Services consistently above 425°C or experiencing frequent thermal cycling benefit from TP316Ti's carbide stabilization, preventing weld decay without additional heat treatment. Ambient and moderately elevated temperature applications—pharmaceutical processing, food-grade piping, general industrial fluid transport—leverage 316L's fabrication simplicity and cost-effectiveness. Chemical exposure assessment proves equally critical; environments with concentrated acids at elevated temperatures favor TP316Ti, while oxidizing media and general aqueous solutions permit 316L. Structural applications requiring welded load-bearing members appreciate TP316Ti's enhanced high-temperature creep strength, whereas pressure piping in power generation and automotive cooling systems effectively utilizes 316L's proven reliability.
Lifecycle and Maintenance Implications
Lifecycle cost analysis must account for weld repair frequency and inspection intervals. In ASTM A312 GR TP316Ti Stainless Steel Pipes, TP316Ti installations in sensitizing service environments demonstrate extended service life—often 20–30 years without HAZ corrosion issues—reducing replacement costs and downtime. The 316L option requires operational discipline to avoid prolonged exposure to sensitizing temperatures, with periodic inspection protocols per ASME B31.3 guidelines. Maintenance accessibility influences material choice; systems with limited access for post-installation heat treatment benefit from TP316Ti's as-welded performance. Conversely, easily accessible piping with established passivation procedures realizes cost savings through the 316L specification.
Procurement Best Practices
Supplier certification verification remains paramount—ISO 9001, PED, and ISO 17025 laboratory accreditations ensure quality management and material traceability. Material test reports (MTR) per EN 10204 3.1 or 3.2 standards confirm chemical composition, including critical titanium-to-carbon ratios in TP316Ti. Third-party inspection services provide independent verification of dimensional tolerances, mechanical properties, and non-destructive testing per ASTM A999 and customer specifications. YOUFA supplies comprehensive documentation, including Welding Procedure Specifications (WPS), Procedure Qualification Records (PQR), and ultrasonic testing reports, facilitating regulatory compliance and quality assurance across global projects. Delivery logistics benefit from proximity to major ports—YOUFA's 7-day expedited delivery to Tianjin Port supports tight construction schedules while maintaining inventory efficiency.
Conclusion
Welding performance distinctions between ASTM A312 GR TP316Ti Stainless Steel Pipes and 316L stainless steel pipes stem from fundamental metallurgical differences—titanium stabilization versus ultra-low carbon content—that directly impact heat-affected zone behavior, post-weld corrosion resistance, and fabrication efficiency. TP316Ti excels in high-temperature services and environments prone to intergranular attack, eliminating sensitization concerns through preferential carbide formation. The 316L grade offers simplified welding procedures, broader availability, and cost advantages for ambient and moderately elevated temperature applications. Procurement decisions must weigh material premiums against lifecycle costs, thermal service profiles, and project-specific constraints. By aligning technical requirements with commercial realities, engineering teams and sourcing professionals optimize material selection for operational reliability and total cost of ownership.
FAQ
Can I use the same welding procedure for both TP316Ti and 316L pipes?
Welding parameters such as heat input, shielding gas composition, and interpass temperatures remain largely compatible between TP316Ti and 316L grades due to their shared austenitic structure. However, filler metal selection must match base material composition—ER316Ti for TP316Ti and ER316L for 316L—to maintain stabilization mechanisms and carbon levels. Post-weld treatment differs significantly; TP316Ti typically requires no solution annealing after welding, while 316L may benefit from passivation to restore surface corrosion resistance.
How does titanium stabilization affect weld corrosion resistance?
Titanium in TP316Ti preferentially binds carbon and nitrogen, forming stable TiC and TiN compounds that prevent chromium carbide precipitation at grain boundaries during welding thermal cycles. This mechanism preserves the chromium oxide passive film throughout the heat-affected zone, eliminating intergranular corrosion risk even after extended exposure to sensitizing temperatures between 425-815°C, a critical advantage in chemical processing and high-temperature exhaust applications.
What filler materials are recommended for welding TP316Ti stainless steel pipes?
AWS ER316Ti or equivalent ISO filler metals maintain compositional compatibility and titanium stabilization throughout weld deposits. These filler materials contain titanium levels matching base metal specifications for ASTM A312 GR TP316Ti Stainless Steel Pipes, ensuring continuous protection against sensitization across the fusion zone and HAZ. Alternative fillers such as ER316L or ER309 may be specified for dissimilar metal joints, though sacrificing some intergranular corrosion resistance.
