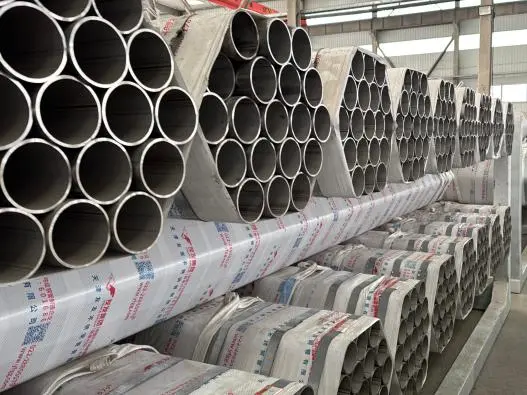

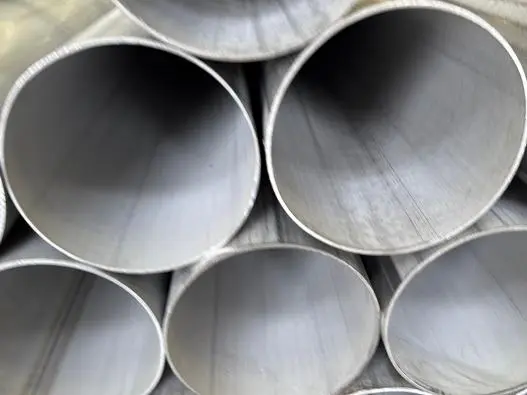

ASTM A928 Electric Fusion Welded Duplex 2507 Pipe for Offshore Systems

When offshore engineers talk about pipe specifications that genuinely hold up under pressure — literal and chemical — the ASTM A928 Electric Fusion Welded Duplex 2507 Pipe comes up consistently. This pipe is a super duplex electric fusion welded product manufactured to ASTM A928 standards, designed for pressure and corrosive service environments. With an outside diameter ranging from 114.3 mm to 2,500 mm, wall thicknesses from 3 mm to 50 mm, and a solution-annealed-plus-water-quenched heat treatment, it delivers a balance of tensile strength and corrosion resistance that most stainless alternatives simply cannot match in offshore conditions.

Understanding ASTM A928 Electric Fusion Welded Duplex 2507 Pipe

What the Standard Actually Covers?

Electric fusion welded (EFW) ferritic/austenitic stainless steel pipes must follow the rules set by ASTM A928. ASTM A790 covers both seamless and standard welded products. A928 only covers EFW pipe made with filler metal, which makes it the best standard for bigger diameters and uses where weld quality classification is important. The standard sets out five types of welds based on the needs for radiographic inspection and the way the welds are configured.

Chemical Composition and Mechanical Properties

Super Duplex 2507 (UNS S32750) has a controlled nitrogen content and about 25% chromium, 7% nickel, 4% molybdenum, and 7% nitrogen. The Pitting Resistance Equivalent Number (PREN) for this makeup is usually above 42, which is a lot higher than normal duplex grades. The minimum yield strength is 550 MPa, and the maximum tensile strength is 800 MPa. These numbers show that the grade is both structurally reliable and suitable for high-pressure offshore work.

EFW vs. Seamless: A Practical Distinction

For offshore piping with bigger sizes, EFW is the most practical and cost-effective choice. Seamless pipe works best for smaller diameters and certain pressure levels. When the fusion welding process is used on plate stock, the wall thickness follows the thickness of the plate directly. This gives procurement teams more options for where to get materials and how to control the dimensions. YOUFA makes EFW pipe with an outside diameter (OD) of 114.3 mm to 2,500 mm, which is a wide enough range to meet most offshore trunk and riser line needs.

Electric Fusion Welding Process and Its Advantages for Duplex 2507 Pipes

How the EFW Process Works

When making EFW, a pre-formed plate is made into the shape of a pipe, and the seam is joined using a multi-pass method and the right filler metal. For paired grades, it is necessary to keep the heat supply within a certain range. When you add too much heat, sigma phase precipitation can happen. This is a brittle intermetallic compound that makes the material less tough and less resistant to corrosion. Controlled welding parameters keep the target balance of 40–60% ferrite and austenite in the weld zone.

Quality Assurance at Every Stage

Radiographic testing (RT), ultrasonic testing (UT), hydraulic testing, and full mechanical and chemical analysis are all parts of YOUFA's production process for ASTM A928 Electic Fusion Welded Duplex 2507 Pipe. There is documentation like MTC/MTR (3.1/3.2), WPS/PQR, TPI reports, and MPS that can be used. These are the documents that most procurement specifications need when they deal with important offshore services. The building has ISO 9001, PED, ISO 17025 lab certification, and TÜV certification, which means that third parties can check the work at every stage of the project.

Weld Class Selection Matters

Five types of welds are described in ASTM A928. Class 1 is fully radiographed and double-welded, and this is the choice that most offshore operators choose for critical work. In Class 3, you can get fully radiographed, single-welded pipe for less demanding applications. Choosing the right class during the procurement stage affects both cost and inspection wait time. That's why YOUFA's expert team helps buyers match weld class to project requirements before the order is confirmed.

Comparing ASTM A928 Duplex 2507 Pipes with Other Duplex and Stainless Steel Grades

2507 vs. Duplex 2205

Most duplex grades are made from duplex 2205 (UNS S32205), which has a PREN of about 34 to 38. It works well in places that are fairly acidic. But in saltwater service or chloride-heavy marine exposure, 2507 is much more resistant to pitting and stress corrosion cracking because it has more molybdenum and nitrogen in it. Engineers first look for 2507 when they are working on offshore systems with fluids that have a harsh chemistry.

2507 vs. 904L and Other Austenitic Grades

Even though 904L is an austenitic type that doesn't rust, it has a much lower tensile strength than 2507. This means that systems will be heavier and pipes will have thicker walls to keep the same pressure. Engineers can make the walls of super duplex pipes thinner while still keeping the structure strong. This directly affects the weight of installation and the cost of materials for large offshore projects.

EFW vs. Seamless for Large-Diameter Applications

For sizes greater than 600 mm, seamless pipe is technically limited and can't be used for business reasons. When EFW pipe is made from certified plate, the dimensions are always the same, the material input can be tracked, and the weld quality can be checked. YOUFA gives you choices for the surface finish (pickled or annealed) and the end finish (plain or angled), so you can directly connect it to offshore flange and valve systems.

Applications and Benefits of ASTM A928 EFW Duplex 2507 Pipe in Offshore Systems

Where This Pipe Gets Specified?

When it comes to oil and gas pipelines, saltwater injection and lift systems, underwater manifold piping, chemical injection lines, and topside process piping, the ASTM A928 Electic Fusion Welded Duplex 2507 Pipe is used all the time. In all of these situations, the environment includes chloride contact, mechanical stress, and changes in temperature. This is why the combined qualities of 2507 are really needed and not just extra-specific.

The main areas where this pipe grade consistently performs are listed below:

• Oil and gas offshore platforms: Seawater cooling lines and process headers where chloride-induced corrosion is a constant operational concern, and where pipe replacement mid-service life is not acceptable.
• Hydrogen production and electrolysis systems: Emerging hydrogen infrastructure increasingly specifies super duplex for piping in aggressive chemical environments, where the combination of high pressure and corrosive media demands a grade with PREN above 40.
• Chemical and petrochemical processing: Acid-handling service and high-chloride process streams where standard austenitic grades fail prematurely, and where lifecycle cost analysis favors higher-grade materials.

This material is still being asked for by buying teams in the energy, chemistry, and marine sectors because it can be used in these areas. The pipe's resistance to corrosion shortens the time between repair visits, and its mechanical strength helps designers make the best decisions for remote buildings that need to be light.

Lifecycle Cost Considerations

Studies in journals of materials engineering show that super duplex stainless steel pipe systems have lower total cost of ownership in offshore service over a 20-year operating time, even though they cost more at first than 316L or 2205. The financial case is made up of less upkeep linked to corrosion, fewer unexpected shutdowns, and fewer inspections.

Procurement Guide: How to Source ASTM A928 EFW Duplex 2507 Pipes?

Supplier Qualifications to Verify

The certification stack of the supplier is just as important as the price when looking for EFW duplex pipe for offshore service. Check that the company has ISO 9001 quality management, a TÜV-certified factory, and an ISO 17025-accredited lab for checking chemicals and machines. These three things are owned by YOUFA, and they can provide 3.1 or 3.2 MTC documentation, third-party inspection (TPI) reports, and full WPS/PQR tracking. These sets of paperwork meet the needs of most big overseas projects.

Lead Time and Order Flexibility

YOUFA has a minimum order quantity of one pipe, which gets rid of the problems that usually slow down changes in procurement or project engineering that are needed for upkeep. For stock items, standard delivery can get them to Tianjin Port in as little as 7 days. With 15 production lines and a yearly output of 50,000 tons, the company can handle both short-term orders and long-term project supply agreements.

Packaging and Logistics

Pipe is packed in wooden boxes that can have steel frames, and the boxes are held together with hexagonal binding and woven bag wrapping. This packaging helps load containers with international freight and keeps the pickled and annealed surface finish safe while it's being shipped.

Conclusion

ASTM A928 Electric Fusion Welded Duplex 2507 pipe is not just any stainless steel product; it is designed to work well in places where rust, pressure, and structural needs all come together. Offshore engineers accept this standard because of its chemical makeup, checked weld quality, and known mechanical properties. These pipes are made by YOUFA to approved standards, and they offer a flexible order structure and enough production capacity to meet the needs of both projects and routine upkeep. For important offshore uses, sourcing from a certified producer with in-house testing capabilities takes the risk out of the supply chain.

FAQ

What is the difference between ASTM A928 and A790 for Duplex 2507?

The ASTM A790 standard covers both regular welded and seamless pipe, and the ASTM A928 standard covers EFW pipe made with filling metal. A928 is usually used for bigger diameters and lists five weld quality groups based on the needs of radiographic inspection. This is an important difference for offshore critical service uses.

Why is heat input control critical during EFW of Duplex 2507?

Too much heat can lead to sigma phase precipitation, an intermetallic phase that is brittle and makes the material less resistant to corrosion and less tough. Too much ferrite content is caused by not enough heat input. Both of these problems make the pipe less useful in service. The target ferrite/austenite balance is kept in the weld zone by controlling parameters during the welding process.

How is PREN verified for supplied pipe?

The mill test certificate (MTC) is used to determine PREN. The formula is: %Cr + 3.3(%Mo + 0.5%W) + 16%N. For the year 2507, the PREN number should always be higher than 42. YOUFA gives buyers 3.1/3.2 MTC documentation, so they can check this number on their own against the requirements of the project specification.

Can these pipes be customized for specific project dimensions?

Yes. YOUFA sells pipe with different lengths or set lengths, ODs between 114.3 mm and 2,500 mm, and wall thicknesses between 3 mm and 50 mm. You can get end finishes that are either smooth or beveled. Before placing an order, you can talk directly with the technology team about your custom size needs.

Are these pipes suitable for hydrogen service environments?

Super duplex 2507 pipe works well in high-pressure, chemically active settings that are common in infrastructure for hydrogen production, such as the pipes that connect to electrolysis systems. Because it doesn't crack under stress and has a high PREN value, it's a good choice for these new uses. However, the material should always be checked against the relevant design codes for specific service conditions.
