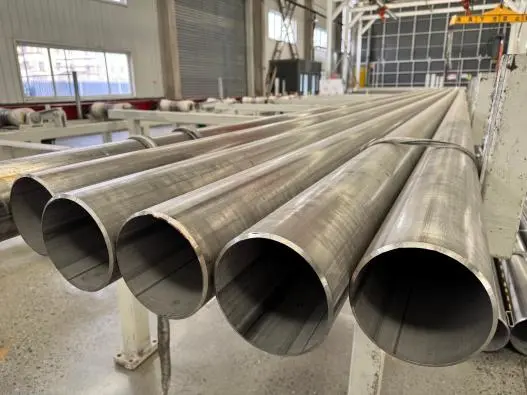

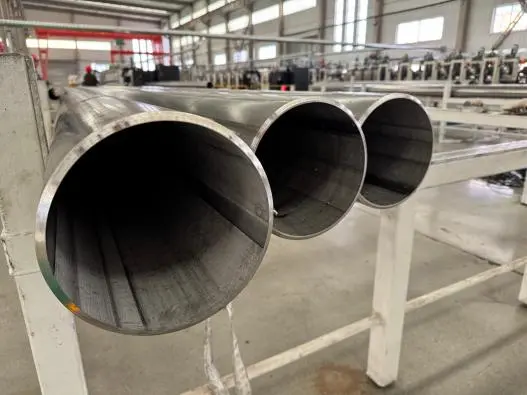

ASTM A928 Duplex 2205 EFW Steel Pipe for Industrial Piping Projects

ASTM A928 Duplex 2205 EFW Steel Pipe is a high-performance, electric fusion-welded pipe manufactured from UNS S32205 or S31803 duplex stainless steel plate. It conforms to the ASTM A928 standard, which specifically governs EFW pipe with added filler metal — a distinction that separates it from standard welded pipe specifications like A790. With a balanced ferritic-austenitic microstructure, this pipe delivers roughly twice the yield strength of 316L stainless steel while maintaining strong resistance to chloride-induced stress corrosion cracking and pitting. It is widely specified for chemical processing, offshore, and marine piping systems where durability under pressure matters.

Understanding ASTM A928 Duplex 2205 EFW Steel Pipe

What Is the ASTM A928 Standard?

ASTM A928 covers electric fusion-welded stainless steel pipe made with filler metal added, mostly for uses that need big diameters that won't rust. The standard divides pipes into five groups based on the amount of weld inspection needed. Class 1 needs a full radiography examination (RT), while Class 2 doesn't need an RT. This classification has a direct effect on buying decisions because RT-certified Class 1 pipe is best for services that need to withstand high pressure and where the integrity of the weld cannot be compromised.

Chemical Composition and Microstructure

Duplex 2205 (UNS S32205 / S31803) is made up of about 22% chromium, 5% nickel, and 3% molybdenum. It also has nitrogen added to it to make the austenitic phase more stable. This two-phase microstructure, which is made up of about half ferrite and half austenite, gives the alloy dynamic qualities that neither phase can do on its own. The chromium-molybdenum content raises the pitting resistance equivalent number (PREN) to over 34, which is much higher than 316L (PREN = 24). This means that it can resist chloride pitting in seawater and process media.

Heat Treatment and Mechanical Properties

The pipe is solution annealed and water quenched after it has been electric fusion welded. This heat treatment gets rid of any intermetallic phases, like sigma, that might form in the area that was heated up during welding. This makes the weld seam resistant to rust again. As a result, the material has a minimum tensile strength of 620 MPa, a minimum yield strength of 450 MPa, and an elongation of more than 25%. Before they are shipped, these values are checked by chemical and mechanical tests, such as hydrostatic, RT, and UT tests.

Advantages and Applications of Duplex 2205 EFW Pipe

Performance Advantages Over 316L and 304 Grades

In places with a lot of chloride, the difference in function between duplex 2205 and normal austenitic types is very clear. ASTM A928 Duplex 2205 EFW Steel Pipe stress corrosion cracking usually happens in grade 316L at temperatures above 60°C in chloride solutions, but duplex 2205 stays solid well past that point. Because it has a higher yield strength, engineers can specify smaller wall sections. This lowers the weight of the material without lowering its pressure grade, which is useful for large-diameter offshore or chemical plant designs.

Here are the three main situations where duplex 2205 EFW pipe consistently performs better than other options:

• Offshore oil and gas subsea flowlines: These pipes manage high-pressure hydrocarbons in saline environments where resistance to CO₂ and H₂S is a hard requirement. The dual-phase alloy resists sulfide stress cracking that would compromise carbon steel or standard austenitic grades within months of service.
• Chemical processing and desalination plants: Large-diameter brine piping and heat exchanger headers face combined chloride concentration and high flow velocity. Duplex 2205 handles this condition without the accelerated wall thinning seen in 316L piping at equivalent service intervals.
• Marine scrubbers and pulp/paper bleaching circuits: The pipe handles corrosive white liquor and acidic condensate in flue gas cleaning systems. Its mechanical strength allows thinner wall selection, cutting structural weight and total installed cost in vessel designs where every kilogram counts.

These benefits for applications directly lead to lower lifetime costs. In a chloride-heavy process, a facility that replaces 316L pipes every three to five years can make that time interval much longer with duplex 2205, which will pay for itself in just one replacement cycle.

Making the Right Choice: Duplex 2205 vs. Alternatives

EFW vs. Seamless Manufacturing

Because EFW pipe is made from plates, it is technically and economically possible to make pipes with diameters above 600 mm OD. This is something that seamless manufacturing can't do. For smaller diameters and high-pressure nozzle uses, seamless duplex pipe works best. But for large-bore piping where plate-based production is common, EFW with the right post-weld heat treatment gives the same corrosion resistance as seamless when solution annealed and water quenched according to the specs.

Duplex 2205 vs. Super Duplex 2507

It has a PREN above 42 and can handle more severe chloride conditions than 2205, which is Super Duplex 2507 (UNS S32750). ASTM A928 Duplex 2205 EFW Steel Pipe is, however, much more expensive per kilogram because it has more nickel and molybdenum in it. For most chemical and offshore uses with a moderate amount of chloride, duplex 2205 is a cheaper material that is strong enough against corrosion. When the pitting index or fluid chemistry calls for it, super duplex is the only choice that makes sense.

Total Cost of Ownership

If you choose a pipe material based only on how much it costs, you will probably end up paying more in the long run. Duplex 2205 EFW pipe costs more up front than carbon steel or 304 stainless steel, but it lasts longer in corrosive environments, which means less upkeep, unexpected downtime, and replacement costs. When procurement teams figure out the total cost of ownership over the life of a 15- to 20-year plant, duplex grades often come out ahead of cheaper alternatives in harsh service conditions.

Procurement Guide for ASTM A928 Duplex 2205 EFW Steel Pipe

Supplier Qualification and Certifications

Buyers can be sure they won't get defective goods if they work with an ISO 9001-certified manufacturer whose quality management procedures are written down. PED (Pressure Equipment Directive), ISO 17025-approved facility, and TÜV certification are some of the other labels that show that testing equipment is calibrated and results can be tracked. Before you approve an order, you should ask for standard papers like material test reports (MTC/MTR 3.1 or 3.2), WPS/PQR paperwork, and UT/RT reports.

Specification and Customization Options

The OD range for EFW bidirectional pipe is from 114.3 mm to 2,500 mm, and the wall thickness ranges from 3 mm to 50 mm. You can get the surface finish pickled or annealed, and the ends can be finished with a plain or beveled edge, depending on what you need for field welding. The length can be random or fixed, depending on the cutting schedule for the project and the space available for transport. For overseas packages, packaging usually includes wooden boxes with steel frames that can be added if needed, hexagonal binding, and woven bags to protect the goods.

Ordering Logistics and Lead Times

Before placing orders, procurement managers should check the minimum order quantities, current lead times, and port logistics. YOUFA has 15 production lines that make 50,000 tons of stainless steel pipe every year. This is enough to handle both small trial orders (minimum order quantity of one pipe) and big project runs. The fastest shipping time to Tianjin Port is seven working days after the order is confirmed. This is a big plus for project teams that have to work with limited installation windows.

Conclusion

ASTM A928 Duplex 2205 EFW Steel Pipe has a clear place in the industrial piping market: it solves real corrosion problems in large-diameter applications where standard austenitic grades fail, and it does this at a price point that is easier for most people to afford than super duplex alloys. The specification includes solution-annealed weld seams, checked mechanical properties, and full documentation traceability. This means that the engineering and procurement teams can confidently back it up. This material is on the specification sheet for projects in chemical processing, offshore, desalination, or marine service because it has been shown to work well in the field.

FAQ

What is the difference between ASTM A928 and ASTM A790?

ASTM A790 covers both seamless and standard welded duplex stainless pipe, while ASTM A928 specifically governs electric fusion welded pipe with filler metal added during production. A928 is generally applied to larger-diameter pipe where plate-based EFW manufacturing is the practical production route.

Can duplex 2205 EFW pipe be used above 315°C?

No. Duplex 2205 is generally limited to service below 300–315°C. Prolonged exposure near 475°C causes embrittlement of the ferritic phase, which significantly reduces toughness and should be avoided in service temperature selection.

What filler metal is required for 2205 EFW welding?

Over-alloyed filler metals with 7–9% nickel, such as ER2209, are standard for welding duplex 2205. The extra nickel compensates for ferrite-favoring conditions during weld cooling and maintains the correct austenite-ferrite phase balance in the deposit.

Does EFW welding reduce corrosion resistance?

When the pipe is properly solution annealed and water quenched after welding, the EFW seam matches the base metal's corrosion resistance. Without post-weld heat treatment, sigma phase and other intermetallic precipitates can form in the heat-affected zone, reducing pitting resistance.

What is the minimum order quantity?

YOUFA accepts orders from a single pipe, which gives project engineers and OEM buyers the flexibility to source trial quantities or fill small project gaps without committing to large volume runs.

Source Your ASTM A928 Duplex 2205 EFW Steel Pipe with YOUFA

YOUFA makes ASTM A928 Duplex 2205 EFW Steel Pipe and is certified by TÜV and ISO 9001. They have 15 production lines and make 50,000 tons of steel each year. We give full paperwork, like MTC/MTR 3.1/3.2, WPS/PQR, and UT/RT records. Our MOQ starts at one pipe, and we can send it to Tianjin Port in as little as seven days. Our technical team is ready to help you with your needs, whether you need normal sizes or measurements that are specific to your project. For a price right now, email us at info@youfass.com or go to youfass.com.
