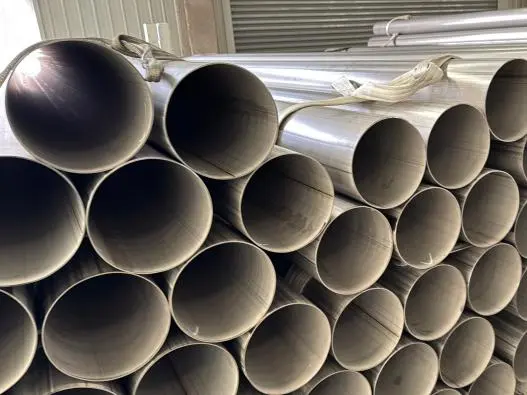

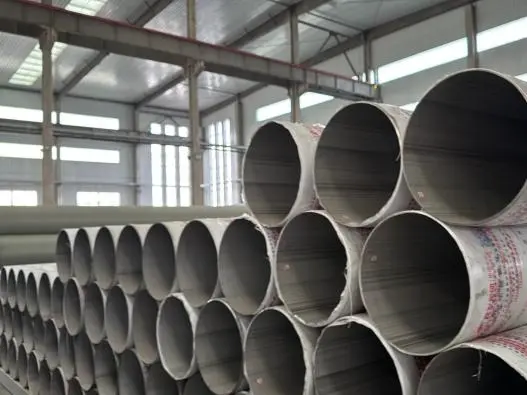

ASTM A790 UNS S32205 Steel Pipe for Cost-Efficient Industrial Piping

When industrial operations demand both structural integrity and long-term corrosion resistance, ASTM A790 UNS S32205 Steel Pipe stands out as a proven solution. This duplex stainless steel pipe combines nearly double the yield strength of standard austenitic grades with a significantly elevated PREN (Pitting Resistance Equivalent Number), making it highly effective in chloride-rich and chemically aggressive environments. Whether you are sourcing for chemical processing, hydrogen production, power generation, or marine systems, understanding this material's properties and procurement nuances can meaningfully reduce your total cost of ownership.

Understanding ASTM A790 UNS S32205 Steel Pipe: Chemical and Mechanical Insights

Chemical Composition That Drives Performance

The original S31803 duplex alloy has been improved by adding nitrogen. This is UNS S32205. It has 22–23% chromium, 3.0–3.5% molybdenum, 4.5–6.5% nickel, and 0.14–0.20% nitrogen in its controlled chemistry. The high nitrogen content keeps the austenitic phase stable, speeds up reprecipitation after welding, and directly raises the PREN value to around 35–36, which is much higher than the 25 level that is usually needed for offshore-grade piping uses.

Mechanical Properties Worth Noting

The mechanical properties of this duplex grade are just as impressive. ASTM A790 UNS S32205 Steel Pipes must have a yield strength of at least 65 ksi (450 MPa) and a tensile strength of at least 90 ksi (620 MPa), with no less than 25% extension. Engineers can request thinner walls for this high-strength profile compared to 316L systems. This directly lowers material weight and manufacturing costs without lowering safety margins.

A solution annealing temperature of 1020–1100°C is usually used for heat treatment, followed by quick water cooling. This process makes sure that the microstructure is balanced, with about 50% ferrite and 50% austenite. This is important for getting the best hardness and weathering performance. Standard pipe sizes range from NPS ½ to NPS 8 and higher, with schedule names based on ASME B36.19M. These cover both seamless and welded designs with ASTM A790 certification.

Comparing ASTM A790 UNS S32205 with Other Stainless Steel Pipes for Industrial Use

Where S32205 Outperforms Common Alternatives

When making a procurement decision, budget, performance, and longevity all need to be taken into account. This is how ASTM A790 UNS S32205 Steel Pipe stacks up against four commonly used grades:

• vs. ASTM A312 TP316L: TP316L has a PREN of about 23–25 and gives about 30 ksi (205 MPa). It is easy for stress corrosion cracking to happen in salt conditions above 60°C. Even though it costs more per unit, S32205 often has a lower lifecycle cost and about twice as much yield strength as other materials.
• vs. UNS S31803: The makeup controls for S31803 are a little less strict, especially when it comes to nitrogen (0.08–0.20% vs. 0.14–0.20% for S32205). Because S32205 has a smaller nitrogen window, the phase balance is more stable, and the PREN floor is higher. This makes it the best choice for critical service lines.
• vs. Super Duplex UNS S32750: Super duplex grades have a PREN above 40 and can handle harsher conditions, but they are much more expensive because they contain more metal. The price of S32205 is much lower than that of other materials used in industrial piping situations like chemical plants, heat exchangers, and pre-treatment for desalination.
• vs. 904L: Alloy 904L is an austenitic grade with a lot of nickel that is meant to be resistant to sulfuric acid. S32205 has a much higher tensile strength and better protection against SCC. Nickel content in 904L can reach up to 25%. S32205 has less nickel, which means it costs less to buy and doesn't lose its ability to resist rust in most industrial fluid systems.

These differences in performance are important because choosing the right grade cuts down on unplanned maintenance, shutdowns, and pipe replacements that happen before they should. All of these things have hidden costs that are much higher than the initial material savings.

Manufacturing, Testing, and Quality Assurance of ASTM A790 UNS S32205 Pipes

From Melt to Mill: How Reliable Pipe is Made

The process of making ASTM A790 UNS S32205 Steel Pipe starts with vacuum or argon-oxygen decarburization (AOD) melting to get the exact metal chemistry that is needed. For uniform shapes, the material is hot-extruded or pierced, then it is cold-drawn and solution-annealed with water cooling. For welded versions, automatic TIG or plasma welding is used, and the whole seam is inspected to make sure the weld is solid and the phases are balanced.

As per ASTM A790, certain tests must be done. These include hydrostatic testing, transverse tension testing, flattening or bend tests, and eddy current or ultrasonic non-destructive examination (NDE). Premium providers usually use optical emission spectrometry (OES) to check the chemical makeup and a Fischer Feritscope to measure the amount of ferrite present.

Certifications and Traceability for Global B2B Buyers

Manufacturers with a good reputation give mill test certificates (MTCs) that follow EN 10204 3.1 or 3.2 and include heat numbers, chemical analyzes, mechanical test results, and NDE reports. In the oil and gas industry, sour service applications often need documentation that shows they follow NACE MR0175/ISO 15156. Before accepting a shipment, global procurement teams must make sure that the MTCs can be tracked, have not been changed, and were issued by accredited third-party labs.

Practical Applications and Industry Use Cases of ASTM A790 UNS S32205 Pipes

Industries Where This Grade Delivers Proven Results

Because ASTM A790 UNS S32205 Steel Pipe has a split microstructure, it works very well in places where there is both mechanical stress and chemical attack at the same time. Among the documented uses are:

• Chemical processing companies that use chloride-containing process streams have had a lot of SCC problems with 316L piping systems, but S32205 installations have made the systems last longer than 15 years with little upkeep related to corrosion.
• Hydrogen production and electrolysis systems need walls that are resistant to rust and stable in size so they can handle high-purity fluids under high pressure. This is especially important for bipolar plate feed lines and electrolyte circulation loops.
• Desalination and seawater treatment pipelines, where high levels of salt and high temperatures make pitting happen faster in lower alloy grades. The PREN benefit of S32205 acts as a useful barrier against the start of localized rust.
• In power production heat exchangers, the higher thermal conductivity of duplex grades compared to austenitic grades makes the machines work more efficiently, and the higher yield strength lets the tube walls be smaller.

These real-life examples show that choosing the right alloy during the specification stage pays off over the entire life of the installation, not just when it is bought.

Procurement Guide: How to Buy ASTM A790 UNS S32205 Steel Pipes with Confidence

Key Criteria for Reliable Sourcing

To find ASTM A790 UNS S32205 Steel Pipe around the world, you need to go through an organized review process. When choosing a supplier, it's important to give the following factors the most weight:

• Make sure the company that made the pressure equipment has ISO 9001 certification and, if needed, PED or ASME compliance credentials.
• Before receiving any shipment, make sure that you ask for full MTC packages and that the heat chemistry meets the limits set by UNS S32205 in ASTM A790 Tables 1 and 2.
• Check the NDE methods that were used. Eddy current testing is not enough for thick-wall pipe; ultrasonic testing should be added for wall thicknesses above Schedule 40.
• Make sure you understand the wait times based on the sizes you need. Standard sizes usually ship in 4–8 weeks from well-known mills; special sizes may take 10–14 weeks.

A lot of the time, you can get 8–15% less expensive duplex stainless steel pipe when you buy in bulk from well-known suppliers. This is especially true for yearly project plans. Building a long-term relationship with a source also lowers the cost of inspections over time, as audit history builds up. This lowers the cost of qualifying each batch.

Conclusion

When used in harsh industrial settings, ASTM A790 UNS S32205 Steel Pipe always provides a good mix of high mechanical strength, better pitting and SCC resistance, and low lifecycle costs. Its controlled chemistry, strict ASTM A790 testing requirements, and wide range of dimensions make it a smart choice for procurement teams in chemical processing, energy, hydrogen production, and marine infrastructure projects that need to balance performance and cost.

FAQ

What is the difference between S31803 and S32205?

Compared to S31803, S32205 has tighter minimum rules on the amount of chromium, molybdenum, and nitrogen. This tighter control over the makeup raises the guaranteed PREN floor and makes the phase balance more stable in the finished pipe. This means that the corrosion performance is more reliable in important service.

Can this duplex pipe grade be welded easily?

Yes, but it needs limited heat input, an interpass temperature of less than 150°C, and special filler metals like ER2209. These controls keep the balance of ferrite and austenite in the heat-affected zone, which is important for maintaining resistance to rust after welding.

Is UNS S32205 pipe suitable for high-temperature service?

This ASTM A790 UNS S32205 Steel Pipe should be used between -50°C and 300°C. When temperatures stay above 315°C for a long time, they can weaken the metal up to 475°C, which is when chromium-rich phase precipitation happens in the ferritic component and makes it less tough over time.

How does it stack up against 904L in devices that use industrial fluids?

Due to its lower nickel content, S32205 has a much higher tensile strength and better protection against stress corrosion cracking at a lower cost. While 904L works best with concentrated sulfuric acid, S32205 is the more cost-effective choice for most industrial chloride-bearing streams.

What type of finish is best for protecting against corrosion?

As per ASTM A380, the surface should be pickled and passivated. This process gets rid of the heat tint and iron contamination on the surface, leaving behind a thick chromium oxide passive layer that gives duplex stainless steel the basic rust protection you'd expect.
