ASTM A790 Duplex 2205 Stainless Steel Pipe in Chemical Processing Systems

When chemical processing engineers need piping that holds up against aggressive acids, chlorides, and high-pressure service conditions, the material choice carries serious consequences. ASTM A790 Duplex 2205 stainless steel pipe has become a trusted solution across industries — from hydrogen production facilities and electroplating plants to offshore chemical platforms. Combining the microstructural benefits of both austenitic and ferritic stainless steels, this dual-phase alloy delivers mechanical strength and corrosion resistance that standard 300-series grades simply cannot match in demanding process environments.

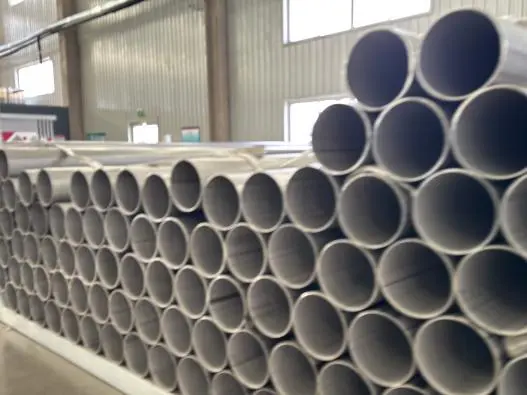

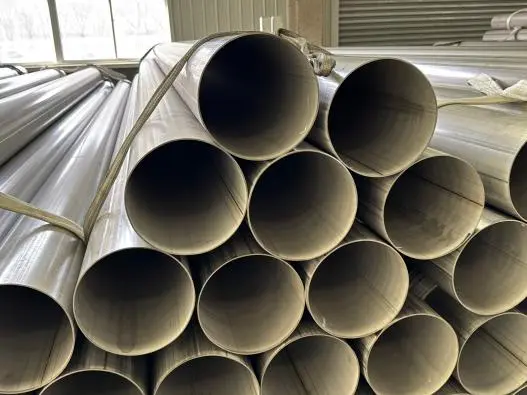

Understanding ASTM A790 Duplex 2205 Stainless Steel Pipe

ASTM A790 Duplex 2205 Stainless Steel Pipe covers ferritic/austenitic stainless steel pipe that is either seamless or welded and is made to meet certain chemical and mechanical needs. The Duplex 2205 grade, which is known by the UNS S31803/S32205 number, is made up of 22% chromium, 5% nickel, 3% molybdenum, and limited amounts of nitrogen. This chemistry makes a microstructure that is about half austenite and half ferrite. This microstructure is what gives the material its balanced performance profile.

Key Mechanical and Chemical Properties

Duplex 2205 is different from other stainless steels because of how it works mechanically. Its minimum yield strength is 65 ksi (450 MPa), which is about twice as strong as 316L. Its maximum tensile strength is usually over 90 ksi (620 MPa). The Pitting Resistance Equivalent Number (PREN) for S32205 is higher than 35, which means it can reliably resist limited corrosion caused by chlorides. ASTM A790 requires solution annealing at 1870–2010°F (1020–1100°C) and then rapid water cooling to stop the formation of intermetallic phases. This keeps the toughness and corrosion resistance of the metal.

The ASTM A790 standard covers a wide range of nominal pipe sizes, and the wall thickness tolerances are the same as those in ASME B36.19M. Because these sizes are standard, Duplex 2205 pipes can be used with flange systems and fittings that are already in place in chemical processing infrastructure.

Comparing Duplex 2205 with Other Stainless Steels for Chemical Processing

In chemical processing, picking the right material is never easy. The choice is based on several things, such as the budget, the operating temperature, the fluid chemistry, and the projected service life. Here's how ASTM A790 Duplex 2205 Stainless Steel Pipe stacks up against the most popular options:

• 316L stainless steel is easy to find and affordable, but its PREN of about 24 makes it vulnerable to pitting and crevice corrosion in chloride-rich streams above 60°C. Duplex 2205 works better in these conditions and doesn't cost a lot more per unit of performance.
• 904L stainless steel is very hard for sulfuric acid to damage, but it works well in reducing acid service as well. Compared to 2205, though, its lower yield strength (about 45 ksi) means that heavier walls are needed for pressure-bearing uses. This makes the installation heavier and more costly.
• Super Duplex 2507 (S32750) has a PREN above 40 and works very well in the harshest salt and high-temperature circumstances. In rough offshore and high-chloride desalination service, it works better than 2205, but its higher alloy content, especially its higher molybdenum and nickel levels, means that it costs more and is only worth it for the most demanding jobs.
• Carbon steel is still a low-cost base material, but it needs protective coatings and regular inspections when it is used with chemicals that eat away at metal. Over the course of five to ten years, the cost advantage it had at first is usually lost because it needs more maintenance and needs to be replaced more often.

In terms of usefulness, Duplex 2205 is in the middle. For a slightly higher price, it offers better corrosion protection and strength than 316L without getting as expensive as super duplex types. Because of this balance, it is the best choice for most industrial chemical handling pipe jobs.

Manufacturing, Quality Assurance, and Testing of Duplex 2205 Pipes

Making ASTM A790 Duplex 2205 Stainless Steel Pipe that meets ASTM A790-standards needs careful attention at every stage of the production process. To get the right ferrite-to-austenite phase ratio, the chemistry of the raw materials needs to be carefully controlled. After being formed, pipes go through solution annealing to get rid of any sigma phase or carbide precipitates that form during high-temperature fabrication. This is true whether the pipes are seamless or welded.

Testing Protocols That Matter

ASTM A790 says that all mechanical and rust tests must be done. Testing for tensile and yield strength shows that mechanical minimums are met heat by heat. Charpy impact tests at temperatures below normal confirm toughness for use in cold climates. Measurement of the ferrite content, usually with magnetic tools or a metallographic study, shows that the dual-phase microstructure is within the acceptable range of 40–60% ferrite.

ASTM G48 pitting tests are used to check for corrosion resistance, and ASTM A262 tests are used to check for intergranular corrosion sensitivity. Before shipping, hydrostatic pressure testing is done on each length of pipe to make sure the weld is strong and the sizes are correct.

Certification and Traceability

Mill test reports (MTRs) from reputable manufacturers include chemical analysis and mechanical test results that can be fully tracked back to each production heat. When you combine ISO 9001-certified production settings with the choice of third-party review, you give procurement teams the documentation chain they need to meet project quality goals and end-client needs.

Procurement Considerations: Sourcing ASTM A790 Duplex 2205 Pipes

It takes more than just comparing unit prices to find a reliable source of certified ASTM A790 Duplex 2205 Stainless Steel Pipes. Prices change a lot because of the cost of raw materials, especially nickel and molybdenum. That's why procurement teams should lock in prices on bulk orders when the market is right.

For stock items, lead times for standard sizes are usually between four and eight weeks. For special sizes or big orders, planning windows may need to be longer. When you buy from manufacturers who keep their own production facilities instead of just trading middlemen, you lower the risk of specification substitution and improve quality control.

Some important things to look for in a Duplex 2205 stainless steel pipe supplier are ISO certifications that can be checked, documented heat treatment procedures, the ability to have third-party inspections, and a history of supplying industries with strict compliance requirements, like chemical processing, energy production, and medical equipment manufacturing.

Applications and Benefits of Duplex 2205 Pipes in Chemical Processing

ASTM A790 Duplex 2205 Stainless Steel Pipe works well in a huge variety of chemical processing situations. It is very useful in heat exchanger tubing, process line headers, and reactor feed systems where temperatures are above 60°C and chloride concentrations are high because it doesn't crack easily under stress corrosion cracking (SCC), the failure mode that makes austenitic steels suddenly break into brittle pieces when they are under tensile stress.

Desalination plants use Duplex 2205 for high-pressure reject brine pipes because it can handle saltwater chloride levels that are several times higher than those in open water. Facilities that make hydrogen and companies that make electrolysis equipment care about how stable it is electrochemically and how resistant it is to hydrogen-assisted cracking. Its acid resistance in sulfuric and hydrochloric acid service is appreciated by industrial electroplating operations.

Total cost of ownership goes down because Duplex 2205 lasts a long time. If a piping system lasts 25 years without needing to be replaced in the middle of its life, it saves money, time, and resources that would have been used up if it broke down early. Several documented industrial case studies from chemical plant operators in the U.S. Gulf Coast region say that Duplex 2205 piping can last more than 20 years in chloride-bearing process streams, while 316L pipes in the same duty only need to be replaced every five to eight years.

Conclusion

If you make ASTM A790 Duplex 2205 Stainless Steel Pipe to ASTM A790 standards, it has good mechanical strength, resistance to corrosion, and long lifespan, making it a good choice for chemical handling systems. Its two-phase microstructure protects against the corrosion problems that common austenitic grades have while keeping the price lower than super duplex options. This grade is always a good choice for harsh service settings where material failure can have serious practical and safety effects. This is true whether it's for making hydrogen, electroplating acid lines, or offshore process pipe.

FAQ

Why choose Duplex 2205 over 316L for chemical piping?

ASTM A790 Duplex 2205 Stainless Steel Pipe has a PREN that is about 35 times higher than 316L and a yield strength that is about twice as high. This means that it will be much less likely to split or crack due to salt and stress corrosion, especially in process streams that are running above 60°C.

What is the maximum service temperature for ASTM A790 Duplex 2205?

Temps in the service area should stay 315°F (600°F) below. Long-term exposure near 475°C causes embrittlement by creating an alpha-prime phase, which weakens toughness without showing any obvious signs.

What is the difference between UNS S31803 and S32205?

S32205 is a more tightly controlled version of S31803, and it sets higher minimums for nitrogen, molybdenum, and chromium. This makes corrosion resistance more uniform and is usually better for important chemical handling jobs.

Can Duplex 2205 pipe be welded in the field?

Yes, but welding needs controlled heat, the right duplex filler metal (which is usually over-alloyed with 9% nickel), and not heating the joint after the welding process above 300°C so that the phase balance stays correct in the heat-affected area.
