ASTM A358 Grade TP304 CL2 Stainless Steel Pipe for Heavy Duty Industrial Projects

When heavy-duty industrial operations demand piping that withstands extreme pressures and corrosive environments, ASTM A358 Grade TP 304 CL2 Stainless Steel Pipe emerges as a proven solution. This electric fusion-welded piping system combines the corrosion-resistant properties of austenitic chromium-nickel alloy with the structural integrity required for large-diameter pressure applications. Class 2 designation indicates double-welded construction without mandatory radiographic examination, offering cost-effective performance for applications where full radiography isn't specified, while maintaining exceptional reliability across chemical processing, power generation, and hydrogen production facilities.

Understanding ASTM A358 Grade TP304 CL2 Stainless Steel Pipe

The ASTM A358 standard rules electric fusion-welded stainless steel pipes made from rolled plate. It meets the industrial need for large-diameter pipes that can't be made cheaply through seamless manufacturing. This standard makes it possible to make pipes with outside diameters ranging from 114.3 mm to 2500 mm. It fills a very important need in building projects that need both size and performance.

Material Composition and Grade Designation

This grade, ASTM A358 Grade TP 304 CL2 Stainless Steel Pipe, is an austenitic stainless steel with 18–20% chromium and 8–10.5% nickel. The nickel forms a protective passive layer that keeps growing when oxygen hits it. Because the material can fix itself, it is especially useful in places where upkeep is hard to get to or costs a lot. The chromium content protects against rust, and the nickel content makes it more flexible and tough, even at very low temperatures. The carbon content stays below 0.08%, which keeps the resistance to rust high in areas that are heated. This also prevents carbide from forming during welding.

The Class 2 standard describes a way of making things where longitudinal welds get double-pass welding with filler metal added, but they don't have to go through 100% radiation testing. This category is for uses where lower joint efficiency factors are still okay within the design parameters. This lowers the cost of inspections while keeping the structure's reliability through strict quality control measures.

Mechanical Properties and Performance Standards

ASTM A358 Grade TP 304 CL2 Stainless Steel Pipes have a tensile strength of more than 515 MPa and a yield strength of about 205 MPa, which is safe enough for high-pressure work. In moderate temperature ranges, these mechanical properties stay the same. However, the grade works best below 425°C, where creep strength issues are less important. When the right filler metal is used and the right heat treatment steps are taken, the electric fusion welding process makes longitudinal seams whose mechanical properties are very close to those of the base material.

Wall thickness ranges from 3 mm to 50 mm, which lets engineers exactly set pressure ratings that can handle system pressures from mild to extreme while keeping material costs as low as possible. Higher internal pressures can be supported by thicker walls, which also make them more resistant to mechanical damage from the outside during installation and operation.

Dimensional Accuracy and Manufacturing Tolerances

ASTM A358 manufacturing limits make sure that measurements are always the same, which is important for field assembly and system integration. Outside diameter tolerances usually stay within ±1% of accuracy, and changes in wall thickness stay within set limits that keep pressure rating estimates accurate. Length options include random delivery for inventory flexibility or fixed lengths that match the needs of the installation, which cuts down on the need for field cutting and the labour costs that come with it.

Pickled and annealed or solution-annealed finishes get rid of welding scale and bring back the chromium-rich passive layer. End finishes include both straight ends that can be threaded or socket welded and bevelled ends that can be butt welded into bigger networks of pipes. With these finishing choices, you can use a variety of joining ways to meet the needs of your project.

Applications and Benefits of ASTM A358 Grade TP304 CL2 Pipes in Heavy Duty Projects

In industries where corrosion is a problem, ASTM A358 Grade TP 304 CL2 Stainless Steel Pipes are being used more and more. This is because the material's durability has a direct effect on the cost of doing business. Corrosion resistance, structural strength, and the ability to get large diameters all work together to solve problems that carbon steel and other materials with smaller diameters can't.

Industrial Sector Applications

ASTM A358 Grade TP 304 CL2 Stainless Steel Pipes are used in chemical processing plants to move strong media like acids, alkalis, and organic fluids at high temperatures. Manufacturers of electrolytic cells use these pipes in drainage systems where chloride would quickly break down less durable materials. Because the material is resistant to pitting and crevice corrosion, the system can last longer than twenty years with little maintenance.

Large-diameter welded stainless steel pipes are used in power plants for flue gas desulfurization, feedwater loops, and wastewater return systems. The 304 grade can handle changes in temperature and keeps its shape through frequent starts and stops that would wear down carbon steel options. The low magnetic permeability and long-term stability of the material in safety-critical systems are especially valuable to nuclear facilities.

Manufacturers of hydrogen production equipment and electrolysis systems use ASTM A358 Grade TP 304 CL2 Stainless Steel Pipe to handle hydrogen and oxygen, making sure that the material is pure and there are no leaks. The austenitic structure is better at resisting hydrogen embrittlement than the ferritic grades. This helps with the move to infrastructure that uses clean energy. Suppliers of fuel cell parts also need fluid transport that doesn't rust and doesn't get into sensitive catalyst systems.

Comparative Advantages and Economic Benefits

Stainless steel pipes have lower lifecycle costs than carbon steel pipes because they don't need internal or exterior coatings or upkeep on the coatings, and they don't need to be inspected or replaced as often. A 304 grade pipe might cost three to four times as much as coated carbon steel at first, but it usually lasts twice as long and doesn't have the coating failure risks that cause unplanned shutdowns.

When compared to options made of seamless stainless steel, electric fusion welding cuts down on material costs for big sizes while keeping the same level of corrosion resistance. Customisation of wall thickness profiles that achieve the best strength-to-weight ratios is possible during the manufacturing process and is not possible with standard seamless products. For projects that need diameters bigger than 600 mm, welded construction is often the only option that can be done technically.

How to Inspect and Verify Quality of ASTM A358 Grade TP304 CL2 Pipes

Quality assurance procedures protect purchase investments by making sure that materials are real, that measurements are correct, and that the structure is solid before ASTM A358 Grade TP 304 CL2 Stainless Steel Pipes are put into service. Visual inspection, dimensional verification, chemical analysis, mechanical testing, and non-destructive examination are all parts of comprehensive inspection methods that are used to back up what manufacturers say.

Non-Destructive Testing Protocols

Ultrasonic testing (UT) looks at weld zones in great detail, finding internal flaws like holes, lack of fusion, or slag inclusions that could weaken the pressure integrity. The UT scans the whole length of the longitudinal weld, and the acceptance standards are set based on the working conditions and pressure ratings. Radiographic testing (RT) is an extra or alternative way to check the quality of an internal weld. It makes lasting film records that can be used for legal purposes and future reference.

During hydrostatic testing, finished pipes are put under 1.5 times the original working pressure to make sure they don't break and that they can hold their own weight before they are shipped. Most tests last at least thirty minutes, which is long enough to find slow leaks caused by tiny flaws. In some situations, pneumatic testing is still fine, but extra safety measures need to be taken because of the risks of stored energy.

Chemical and Mechanical Verification

Spectroscopic examination of the base material and weld deposits shows that the alloy's makeup meets the requirements for the grade. Managers in charge of buying things should demand test papers that show the amount of chromium, nickel, carbon, manganese, silicon, phosphorus, and sulphur in different heats. Changes outside of certain ranges can have a big effect on corrosion resistance and mechanical properties, which could cause the material to fail before it's supposed to.

Tensile testing finds out the yield strength, final tensile strength, and stretch values of a material, which proves that it can be processed. Standardised tests are done on specimens taken from pipe bodies and weld areas according to ASTM E8. The results are written down on material test certificates. Testing for hardness is another way to make sure that the heat treatment created the right mechanical conditions without making the metal too hard or too soft.

Certification Requirements and Traceability

Material test reports that meet EN 10204 Type 3.1 or 3.2 standards let a third party check the quality of the product without the company being involved. These papers keep track of materials from the steel mill heat numbers all the way through fabrication, testing, and final inspection. They set up accountability chains that make it easier to find the cause of problems during service.

Suppliers with a good reputation keep ISO 9001 quality management systems, PED certification for pressure equipment compliance, and ISO 17025-approved testing labs to make sure measurements are correct. Third-party checks by TÜV or a similar organization make sure that the manufacturing processes meet foreign standards. YOUFA's certifications in these systems show that they are dedicated to quality that procurement professionals can rely on for important projects.

Comparing ASTM A358 Grade TP304 CL2 with Other Stainless Steel Pipes

When choosing a material, you have to weigh the performance needs against the cost limits and think about how it will be used in the long run. By knowing how ASTM A358 Grade TP 304 CL2 Stainless Steel Pipes stack up against other grades and specifications, you can make decisions that are best for your project.

TP304 Versus TP316 and TP316L

ASTM A358 Grade TP 304 CL2 Stainless Steel Pipe is very resistant to corrosion in general, but TP316 and TP316L types contain molybdenum (2–3%), which makes them more resistant to pitting and crevice corrosion caused by salt. The extra 15 to 20 percent cost for 316 types is usually worth it for marine uses, desalination plants, and sites near the coast. However, 304 grade material works well in many inland chemical processing and power generation applications with lower investment levels.

The L-grade types (304L, 316L) keep carbon levels below 0.03%. This lowers the risk of sensitisation even more in thick-section welding, where cooling rates are still slow. L-grades are better for welding jobs that don't need post-weld heat treatment, but standard grades that have been properly heat treated work just as well in many situations.

ASTM A358 Versus ASTM A312

ASTM A312 covers both seamless and welded stainless steel pipes, which are usually made in smaller sizes that can be joined automatically. A312 pipes work best in sizes smaller than 6 inches, where making them seamless is still cost-effective. The ASTM A358 standard is designed to make large-diameter parts from plates. It offers thickness ranges and diameter choices that aren't offered in A312 goods. Almost all projects that need pipes with a diameter of 400 mm choose A358 because it is easy to make and doesn't cost much.

Classification systems range from specification to specification. The A358 system has five classes, which correspond to different levels of welding, heat treatment, and testing. The A312 system, on the other hand, uses a simpler method to differentiate between seamless and welded materials. Engineers need to know these differences in order to set standards that meet the needs of the service.

Lifecycle Cost Analysis

Initial material prices only make up 20–30% of all the costs that come up with a piping system over the normal life of a manufacturing building. The costs of installation labour, repairs, energy loss due to corrosion-induced roughness, and replacements during unplanned outages often go over the initial capital investment. Because ASTM A358 Grade TP 304 CL2 Stainless Steel Pipe doesn't rust, the design flow rates and pressure drop calculations stay the same over time. This keeps the system's efficiency high, which happens a lot with carbon steel systems.

As rules require lower emissions and better resource efficiency, environmental concerns are becoming more and more important in material choice. Because stainless steel can be recycled and has a long useful life, it fits in with sustainable efforts. Also, since protection coatings aren't used, there aren't any worries about coating degradation products getting into natural or process streams.

Procurement Guide: Buying ASTM A358 Grade TP304 CL2 Stainless Steel Pipes

Strategic buying practices get the best deals while lowering the risks of poor-quality ASTM A358 Grade TP 304 CL2 Stainless Steel Pipes, late deliveries, and problems after delivery. Successful sourcing requires reviewing providers beyond simple price comparisons, considering manufacturing capability, quality systems, shipping reliability, and expert support.

Supplier Qualification Criteria

When project plans don't leave much room for change, manufacturing ability is important. YOUFA has 15 production lines that can each make 50,000 tonnes of steel each year. This gives them the flexibility to meet urgent needs that smaller fabricators can't meet. The fast shipping choice to Tianjin Port in seven days helps with tight building plans that are popular in turnaround projects and capacity increases.

Certification portfolios show that a company cares about quality. Suppliers holding ISO 9001, PED, and ISO 17025 laboratory accreditation demonstrate investment in quality infrastructure that translates to consistent product performance. When compared to self-certified suppliers, third-party audits by TÜV or similar groups provide independent confirmation of quality claims. This lowers the buyer risk.

Material Test Certificates (MTC/MTR) with EN 10204 3.1 or 3.2 certification, Third-Party Inspection reports, Welding Procedure Specifications (WPS) and Procedure Qualification Records (PQR), Manufacturing Process Sheets, and full UT/RT examination reports should all be sent with shipments. These papers help with following the rules, meeting insurance requirements, and making quality checks on construction easier.

Pricing Factors and Market Considerations

The prices of raw materials change with the nickel and chromium markets around the world. They usually make up 60 to 70% of the price of final pipes. Large orders save money on materials and production time because of economies of scale. However, YOUFA's single-pipe minimum order number can be used for small repair needs and pilot projects. When delivery times are long, fixed-price contracts protect against market volatility, but they need careful analysis of market trends and hedging costs.

The thickness of the wall has a big effect on the price because it uses more material and takes longer to process. Without going overboard, projects should find the best wall thickness for the design pressure plus safety margins. Every millimetre of extra thickness adds a measurable cost over hundreds of meters of pipe.

Delivery Logistics and Inventory Management

Lead times depend on the complexity of the order, the level of customisation needed, and the place in the production queue. Custom sizes that need special tools to make ship more slowly than standard sizes. Talking to providers while the specifications are being made can help find small changes that speed up delivery without affecting performance needs.

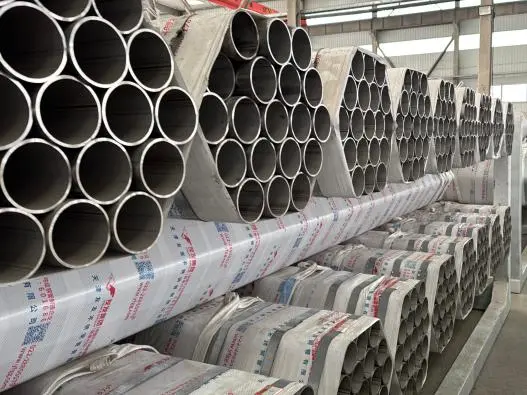

Quality packaging protects your investment in pipes while they are being shipped and stored. Handling and stacking don't damage wooden crates with available steel frames, and hexagonal binding with woven bags keeps surface treatments safe from water and physical touch. Using the right package cuts down on field rejections and avoids delays caused by return shipments.

Conclusion

In conclusion, for tough commercial uses, ASTM A358 Grade TP 304 CL2 Stainless Steel Pipe has the ability to fight corrosion, hold its shape, and come in a variety of sizes. The Class 2 standard strikes a good mix between quality control and low cost, which makes it ideal for large-diameter pressure pipes used in chemical processing, power generation, and new hydrogen infrastructure. To choose the right material, you need to know how its composition, mechanical properties, and lifecycle costs differ from other grades and specifications. For procurement to go well, suppliers need to be qualified, there needs to be a lot of quality paperwork, and there needs to be strategic planning for transportation that works with project schedules and budgets.

FAQ

What distinguishes Class 2 from Class 1 in ASTM A358 specifications?

For pressure calculations, Class 1 pipes have 100% of their longitudinal welds scanned with X-rays, which gives them a 1.0 joint efficiency factor. ASTM A358 Grade TP 304 CL2 Stainless Steel Pipes, on the other hand, have double welding with filler metal but no required X-rays, which gives them a lower joint efficiency. Class 2 is good for uses where design pressures allow lower joint efficiency factors while still keeping enough safety gaps and lowering the cost of inspections.

Can TP304 grade handle hydrogen service in electrolysis systems?

ASTM A358 Grade TP 304 CL2 Stainless Steel Pipe works well enough in many hydrogen uses, especially for distributing hydrogen at lower pressures and at room temperature. The austenitic structure is better at keeping hydrogen from weakening stainless steels than the ferritic structure. But if the hydrogen is used at high pressures or temperatures, it may be necessary to look at higher nickel types or certain materials that can handle high hydrogen levels, based on the partial pressure and temperature.

How does electric fusion welding compare to seamless pipe manufacturing?

Electric fusion welding makes it possible to make pipes with diameters up to 2500 mm and with special wall thickness combos that aren't possible with seamless methods. Seamless pipes don't have longitudinal welds, but EFW that is done correctly with the right filler metal and heat treatment has the same mechanical properties and resistance to corrosion as seamless material. Because seamless methods can't make parts with diameters bigger than 600 mm, they are usually soldered together.

What heat treatment requirements apply to TP304 Class 2 pipes?

After welding, solution annealing at temperatures between 1040°C and 1120°C followed by fast cooling recovers corrosion resistance by breaking down chromium carbides and putting back together the protective passive layer. This heat treatment is necessary for thick-walled parts where the heat from welding could make the material more sensitive. When ASTM A358 Grade TP 304 CL2 Stainless Steel Pipe is heated correctly, it keeps its rust resistance the same across the base material and join zones along its length.
