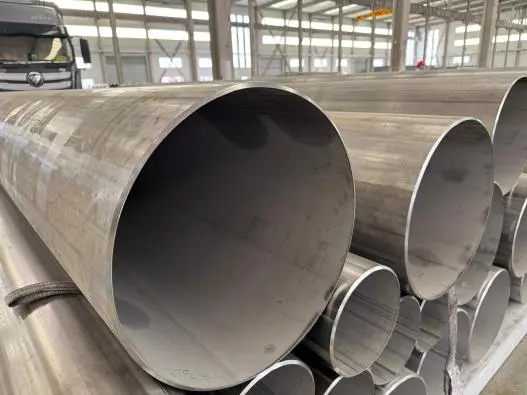

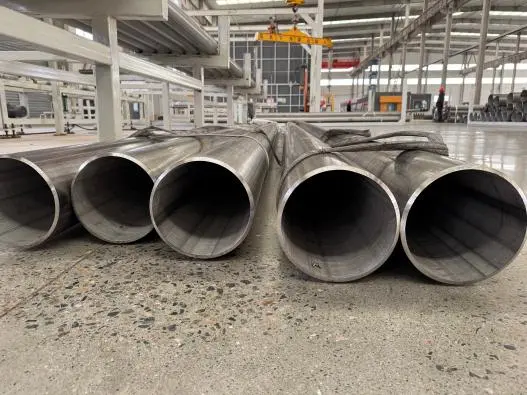

ASTM A358 800H CL3 Pipes Ensure Stability in Extreme Heat Conditions

When your industrial operations demand materials that won't buckle under pressure—literally—ASTM A358 800 800h CL3 Steel Pipes deliver the reliability you need. These nickel-iron-chromium alloy pipes are specifically engineered to maintain structural integrity when temperatures soar beyond 1000°F (538°C), making them essential for power generation, petrochemical processing, and chemical manufacturing. The "CL3" designation means these pipes undergo rigorous multi-pass welding with mandatory full radiographic examination, ensuring every joint meets the highest structural standards required for critical applications where failure isn't an option.

Understanding ASTM A358 800H CL3 Steel Pipes: Properties and Standards

The chemistry behind these high-temperature performers shows why procurement teams in energy-hungry fields choose them for important projects. The 800H grade has carefully balanced amounts of nickel (30–35%), chromium (19–23%), and iron as the main element. The carbon content is kept between 0.05 and 0.10%. This mix makes a matrix that doesn't break down at high temperatures and keeps its creep strength even after being exposed to high temperatures for a long time.

Chemical Composition That Delivers Performance

The main difference between normal 800 grade and 800H is that 800H has stricter carbon control and grain size limits. The 800H standard calls for solution annealing at around 2100°F (1149°C). This creates a coarse grain structure (ASTM grain size 5 or larger) that makes the creep-rupture strength a lot higher. Because the microstructure is controlled, your piping systems will keep their shape and ability to hold pressure even after years of thermal cycling.

ASTM A358 Compliance and Testing Protocols

Electric fusion welding is used in Class 3 construction, and all of the weld seams are scanned for flaws using x-rays. YOUFA tests every pipe it makes with both ultrasonic (UT) and radiography (RT) waves to find any cracks in the material that could affect its performance. Our ISO 17025-certified lab does independent chemical and mechanical testing and gives you Material Test Certificates (MTC) that meet EN 10204 3.1 or 3.2 standards. These papers show the confirmed grain size, the tensile strength, and a full chemical makeup study that can be linked to the original heat number.

Precision electric fusion welding technology is used on all 15 of our dedicated production lines at YOUFA facilities to make things. Our yearly production capacity is 50,000 tons, and we make welded pipes with outside diameters from 114.3 mm to 2500 mm and wall thicknesses from 3 mm to 50 mm. Because of these physical options, you can choose the exact pipe layout your system needs without lowering quality or supply.

Corrosion Resistance and Heat Treatment: Ensuring Longevity in Harsh Environments

Your high-temperature pipes should be safe from both heat stress and chemical attack to protect your investment. The 800H grade nickel-chromium matrix is very resistant to oxidizing and carburizing atmospheres, which are common in combustion environments and hydrocarbon processing units. At high temperatures, the chromium content creates a stable protective oxide layer that stops scale formation, which would otherwise cause the wall to thin and fail before its time.

Solution Annealing for Optimal Mechanical Properties

Heat treatment is a key part of getting the mechanical properties that make 800H performance what it is. Solution annealing includes heating the material to between 2050 and 2150°F (1121 and 1177°C) and keeping it there long enough to break down carbides and make the grains grow evenly. When you quickly cool something, usually by quenching it with water or forcing air, the austenitic structure stays in place and chromium carbide doesn't form, which could cause intergranular rust. This step is especially important for weld zones, where differences in temperature during fabrication can cause carbide to form in certain spots if they are not managed properly.

Welding Guidelines for Maintaining Integrity

When joining ASTM A358 800 800h CL3 Steel Pipes, careful attention to welding parameters and filler metal selection is essential. ERNiCr-3 or ERNiCrMo-3 filler metals, matched to the base metal composition, ensure comparable corrosion resistance and high-temperature strength in weld zones. Preheating is generally not required, but interpass temperatures should be maintained below 350°F (177°C) to prevent excessive grain growth in the heat-affected zone. Post-weld solution annealing can restore optimal grain structure and reduce residual stresses, though this step depends on application requirements and applicable code standards.

In addition to resistance to oxidation, corrosion resistance also includes resistance to sulfidation, compounds containing chlorine, and reducing acids that are often used in chemical processing. The nickel keeps the metal stable in sulfur-filled environments up to 1800°F (982°C), and the chromium keeps it from cracking from chloride stress corrosion. Because of these qualities, 800H pipe can stay strong in a wide range of chemical conditions where regular austenitic stainless steels would break down quickly.

Application Scope and Industry Use Cases

Industrial facilities that work with extreme temperatures depend on 800H piping to keep running without stopping for no reason. The material has a history of working well in tough situations, which is why engineers choose it. They know that good infrastructure lowers lifetime costs by reducing the need for upkeep and extending service intervals.

Power Generation Systems

These high-temperature metal pipes are used in boiler systems, superheater sections, and heat recovery steam generators at utility-scale power plants. The 800H creep-rupture strength keeps the structure strong in steam production systems that work at or above 1100°F (593°C), where regular steel grades would deform more quickly. One large combined-cycle plant in the Gulf Coast area saw a 40% drop in the number of superheater tube replacements after switching from 304H to 800H specifications. This saved a lot of money and made the plant more available.

Petrochemical and Refining Operations

Pipes are put thru high temperatures and harsh chemicals at the same time in thermal cracking units, catalytic reformers, and petroleum processing trains. In the carburizing and sulfidizing atmospheres that are common in these processes, the 800H alloy keeps its protective oxide layer. This keeps it from being attacked by metal dusting and sulfidation, which happens to lower-quality materials. A big company that makes ethylene said that switching to 800H specification pipes in their pyrolysis furnaces increased the service life of their radiant coils from 18 months to more than 36 months.

Chemical Processing and Industrial Furnaces

Accurate temperature control and materials that don't rust are important for factories that make specific chemicals, medicines, and advanced materials. Radiant tubes in heat treatment ovens, retort systems for working with metal, and pipes for moving molten salt around all benefit from 800H's ability to fight oxidation and keep its shape. The material works well in situations where it is heated and cooled many times, which would cause materials with lower ductility and thermal fatigue resistance to crack.

These real-life examples show how choosing the right materials for pipes has a direct effect on how well they work and how safe they are. If you only look at the original cost when making a purchase choice, you may end up with early failures, emergency fixes, and production losses that are much higher than the small premium for properly defined high-temperature alloys.

Choosing the Right Pipe: Comparative Analysis for Informed Procurement

When you know how the different specifications for pipes compare, you can make decisions that meet both technical needs and your budget. Even tho different materials might look like they would work on paper, how they actually perform in real-world situations shows important differences.

Material Grade Comparisons

Standard austenitic types, such as 316L stainless steel, don't rust well but don't have the creep strength needed above 1000°F (538°C). For structural uses, 316L can only be exposed to temperatures up to 800°F (427°C) for long periods of time. Any higher than that and the material quickly loses its strength. Even when alloys are added to carbon steel pipes, they can't handle the oxidation and scaling that happen when the temperature goes above 900°F (482°C). The 800H standard bridges the performance gap between these materials, allowing them to be used in many situations up to 1800°F (982°C).

When you compare 800H to other high-temperature metals, you can see that the price and performance are not always the same. Alloys 625 and 800HT are more expensive than other alloys but have better creep strength and rust protection. For most industrial uses in the 1000-1400°F (538-760°C) range, the 800H grade is the best value because it meets technical requirements without specifying too many properties of the material that aren't needed for the job.

Dimensional Considerations and Pressure Ratings

The choice of wall thickness for ASTM A358 800 800h CL3 Steel Pipes affects both pressure containment capability and thermal response behavior. Schedule 40 provides sufficient strength for many applications while minimizing cost and system weight, whereas Schedule 80 becomes necessary when higher design pressures, external loads, or corrosion allowances demand thicker walls. YOUFA's engineering team can assist with pressure rating calculations based on your specific operating conditions, considering temperature derating factors, weld joint efficiency, and relevant code requirements—whether working to ASME B31.3 for process piping or ASME Section I for power boilers.

Welded Versus Seamless Construction

Electric fusion welded (EFW) pipes made to Class 3 standards have joint efficiency that is the same as smooth pipes after going thru a lot of radiography testing. When the diameter is more than 16 inches (406.4 mm), welded construction is usually the only option because of the limitations of manufacturing seamless pipes in those sizes. When building with thick walls, where smooth making would take a lot of machining, the welded method is also cheaper. Our full weld procedure specifications (WPS) and procedure qualification records (PQR) make sure that the quality stays the same from one production run to the next. Only certified welders follow the written parameters for each weld they do.

To avoid galvanic corrosion and even temperature expansion, flange connections must match the pipe material standard. This is true whether the connection is a weld neck, a slip-on, or a socket weld. We offer matching 800H flanges that are made to ASME B16.5 or B16.47 standards and come with paperwork that shows where the materials came from and how they were tested mechanically.

Procurement Guide: Buying ASTM A358 800H CL3 Pipes with Confidence

Finding important piping materials is more than just comparing prices. You need to be sure that the supplier has the manufacturing skills, quality systems, and technical support to deliver materials that work as planned.

Evaluating Manufacturers and Distributors

When compared to multiple distribution outlets, buying directly from well-known manufacturers like YOUFA is better for quality control, expert help, and cost-effectiveness. Being one of China's Top 500 companies shows that we are dedicated to making high-quality products and keeping customers happy around the world. When looking at possible suppliers, make sure they have the right certifications. These should include ISO 9001 for quality management, PED compliance for European markets, and TÜV certification for independent quality auditing.

Qualifications for making things are just as important as certifications. If your provider has production lines that are only used for high-alloy materials, you don't have to worry about contamination that comes up when facilities switch between carbon steel and stainless steel types. Our 15 specialized production lines only work with stainless and high-alloy pipes. They store and handle materials in separate ways so that they can be tracked from the mill sheet to the final delivery.

Pricing Dynamics and Lead Time Considerations

Volume pricing takes into account economies of scale when buying raw materials, planning production, and coordinating logistics. For larger project quantities, preferential pricing structures are usually available. Multi-shipment contracts that allow for better production planning can also lead to additional discounts. Our flexible minimum order number of just one pipe can be used for prototypes or last-minute replacements, and our fastest shipping time of seven days to Tianjin Port keeps your project plans on track.

Knowing the different parts of wait time helps you plan the right time to buy something. Getting the raw materials takes about two weeks, making the product and testing it takes another two to three weeks, depending on the size and amount, and shipping it internationally can take anywhere from two to six weeks, depending on the location and way of shipping. If your project needs faster delivery, we can handle rush orders by speeding up the production schedule.

Documentation and Compliance Requirements

Full material documentation protects your investment and meets government standards. YOUFA's shipments always come with Material Test Reports (MTR) that list all of the chemicals used and the materials' mechanical and electrical properties. They also include third-party inspection (TPI) reports when needed, details on how to weld and make the products, and full ultrasonic and radiographic testing reports. This set of paperwork makes it possible to track things that are needed to meet pressure vessel code requirements, meet insurance requirements, and meet quality management systems.

To follow export rules, you need to know about international trade rules, material classification codes, and the needs of the target country. Our skilled export team takes care of all the paperwork, like business invoices, packing lists, certificates of origin, and any other special documents your country needs. This all-around approach to exporting cuts down on delays at customs and makes sure that materials get to your facility without any problems.

Conclusion

When selecting materials for high-temperature piping applications, careful consideration of metallurgical characteristics, manufacturing quality, and supplier capabilities is essential, and ASTM A358 800 800h CL3 Steel Pipes have demonstrated reliable performance across diverse industrial settings where elevated temperatures challenge material limits. By partnering with manufacturers offering production capacity, quality assurance, and technical expertise, you can secure the dependable infrastructure your operations require. Investment in materials properly matched to your service conditions yields returns through extended service life, reduced maintenance requirements, and uninterrupted operations that support your production and profitability objectives.

FAQ

What distinguishes CL3 from CL1 in ASTM A358 specifications?

Class 1 pipes are double-welded, and both the weld and the base metal next to it are fully scanned with x-rays. Class 3 pipes are welded twice, but radiography testing only looks at the seam where the two seams meet. This gives the joint an efficiency of 1.0, which is the same as a seamless construction. Both ratings make sure the structure is strong, but CL3 is a more cost-effective option for situations where full weld zone inspection meets code standards without the extra base metal radiography that is required for CL1.

Can 800H substitute for standard 800 grade?

The 800H version can be used instead of the standard 800 in situations where better creep-rupture strength is needed, especially when exposed to temperatures above 1000°F (538°C) for a long time. The reverse substitution is limited because standard 800 doesn't have the controlled grain size and carbon content that make 800H work better at high temperatures. Before replacing materials, you should always check with your design engineer to make sure you're still following the rules and conditions of the design.

Does post-weld heat treatment apply to Class 3 piping?

ASTM A358 doesn't always require heat treatment after welding, but the 800H grade usually does get solution annealing to get the grain structure and carbide distribution back to how they should be. This heat treatment, which is done at about 2100°F (1149°C), makes sure that the heat-affected zone has the same creep-rupture qualities as the base metal. Whether or not PWHT is needed for your project depends on the needs of the application and the pressure vessel codes that apply.

Partner with YOUFA for Certified High-Temperature Piping Solutions

YOUFA sells approved high-temperature alloy pipes and offers full expert help and quality guarantee. As a reputable company that makes ASTM A358 800 800h CL3 Steel Pipes, we use cutting-edge EFW technology and strict testing procedures to make sure that every pipe meets the highest standards for use in extreme heat situations. Assisting with specifications, material choices, and on-site commissioning, our engineering team makes sure that the project goes smoothly. For detailed technical specifications, project-specific quotes, and bulk pricing on the high-temperature pipes you need, email us at info@youfass.com. You can look at our whole product line at youfass.com and find out why top power plants, petroleum plants, and chemical processing plants around the world trust YOUFA for their important pipework. We keep our prices low, our delivery times short, and we provide all the documents your purchasing and engineering teams need to make confident specification choices.
