ASTM A358 347H Class 1 Pipes Deliver Reliable High Temperature Strength

When your industrial process depends on maintaining integrity at temperatures reaching 815°C, material choice becomes mission-critical. ASTM A358 Grade 347 347H Class 1 Steel Pipes are specifically engineered to resist creep deformation, intergranular corrosion, and thermal cycling stress—challenges that cause standard austenitic grades to fail. With niobium stabilization and a controlled carbon range of 0.04-0.10%, these electric fusion welded pipes meet the extreme demands of petrochemical refining, thermal power generation, and chemical processing environments where downtime translates directly to lost revenue.

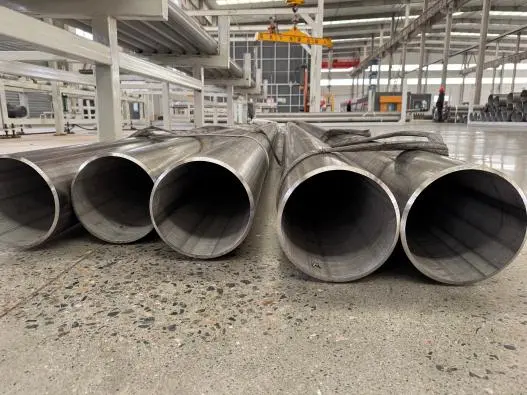

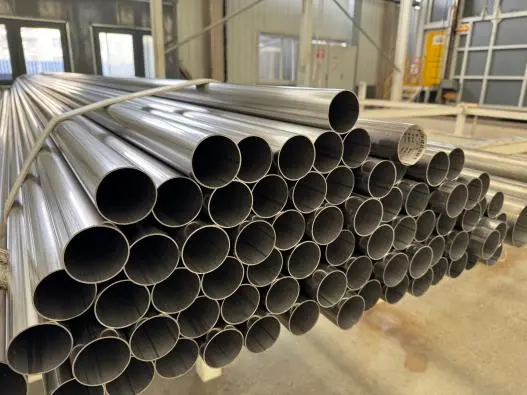

Understanding ASTM A358 347H Class 1 Steel Pipes

The chemistry engineering behind ASTM A358 Grade 347 347H Class 1 Steel Pipes is what makes it work technically. In contrast to standard 304 or 316 stainless steel, this type has more than ten times as much Columbium (Niobium) as carbon. This smart alloying stops chromium carbide from forming along grain boundaries when soldering and exposed to high temperatures. This is called sensitization, and it leads to terrible intergranular rust.

Chemical Composition and Stabilization Mechanism

The letter "H" stands for a higher carbon band that is measured between 0.04% and 0.10%. This higher amount of carbon directly raises the creep rupture strength, which lets the material keep its shape under long-term temperature stress. When temperatures go above 1000°F (538°C), creep resistance is what determines how reliable a structure will be in the long term. Niobium creates solid carbides (NbC) that bind carbon atoms together. This frees up chromium to keep up the oxide layer that protects against rust and corrosion.

Mechanical Properties and Performance Metrics

At room temperature, ASTM A358 Grade 347 347H Class 1 Steel Pipes have a minimum tensile strength of 515 MPa (75,000 psi) and a minimum yield strength of 205 MPa (30,000 psi). This grade is different because it can keep a lot of its strength at high temperatures. At 1500°F (815°C), the allowed stress is still much higher than for unstabilized grades. This means that it can be used for superheater tubes and high-pressure steam pipes in ultra-supercritical boiler systems. Usually, elongation is more than 30%, which gives the material the flexibility it needs to handle heat growth cycles without breaking.

Manufacturing Standards and Quality Assurance

As per ASTM A358 Class 1, double electric fusion welding with filler metal addition is required, followed by a 100% radiographic examination. This thorough X-ray inspection process makes sure that the weld is solid and gives it a joint efficiency factor of 1.0. This means that engineers can use the full allowed stress value in their designs without any reductions. In addition to this standard, YOUFA uses material tracking systems and heat-lot verification to make sure that every pipe section fits chemical specs that are checked using spectroscopic analysis and dimensional tolerances.

Comparing ASTM A358 347H with Other Stainless Steel Pipes for High-Temperature Applications

Knowing the differences between grades helps procurement teams make smart choices that meet operational needs and stay within budget. Several types of austenitic stainless steel say they can withstand high temperatures, but their behavior is very different because of changes in how they are made.

Grade 347 vs. 347H: The Carbon Differential

Standard Grade 347 has up to 0.08% carbon and is good for general corrosion resistance and service at moderate temperatures. The ASTM A358 Grade 347 347H Class 1 Steel Pipes version limits the carbon range to 0.04-0.10%, making sure that there is enough carbon to get the best creep strength. This difference means that parts used in power generation will last 15-20 years longer because they will be under stress at 550–650°C for decades. The extra cost of the 347H standard is worth it for projects that will be exposed to high temperatures all the time.

347 vs. 321: Stabilization Element Comparison

Both grades become stable, but they do so in different ways by using different alloying methods. Titanium is used in grade 321, and niobium is used in grade 347. Niobium stabilization works better in settings that are highly corrosive and oxidizing. When hydrogen sulfide and high-temperature steam are present in hydrocracker operations, niobium-stabilized ASTM A358 Grade 347 347H Class 1 Steel Pipes show better resistance to polythionic acid stress corrosion cracking. This is a type of failure that has caused many unplanned refinery shutdowns.

Performance Validation Through Field Experience

A petroleum plant in the Midwest switched from Type 304H pipes to ASTM A358 Grade 347 347H Class 1 Steel Pipes in their delayed coker unit. The 304H system had to be replaced every six years because it cracked from working at 900°F with repeated thermal shocks. Ultrasonic thickness readings after eight years of use showed that the ASTM A358 Grade 347 347H Class 1 Steel Pipes system had kept 97% of its original wall thickness with no signs of intergranular attack. This proved that choosing the right grade was worth the money.

Selecting and Procuring ASTM A358 347H Class 1 Steel Pipes

Strategic procurement is more than just comparing prices; it also includes qualifying suppliers, making sure they can deliver on time, and making sure they can provide technical support. Costs of raw materials change with the price of nickel and chromium around the world, but the quality of the fabrication determines the long-term value.

Supplier Evaluation Criteria

Reputable makers keep licenses like ISO 9001 for quality management, compliance with the ASME Boiler and Pressure Vessel Code, and often API 5L or PED (Pressure Equipment Directive) qualifications. We set up our 15 production lines with automated welding equipment that keeps the heat input constant, which is very important for getting uniform weld zone properties. Traceability systems connect mill test reports to specific ASTM A358 Grade 347 347H Class 1 Steel Pipes segments so that they can be checked after installation during regulatory inspections.

Testing and Inspection Protocols

In addition to the required radiography, smart procurement calls for more non-destructive testing. Ultrasonic testing finds cracks below the surface, and liquid penetrant testing finds flaws that break through the surface. Positive material identification (PMI) checks the alloy's chemistry, and hydrostatic testing checks its ability to withstand pressure. As per ASTM A999 guidelines, dimensional checking should check the limits for outside diameter, wall thickness, and straightness. These high-quality gates keep mistakes during installation in the field from driving up project costs.

Lead Time Planning and Inventory Strategy

Standard sizes usually ship in 4 to 6 weeks, but depending on mill availability, custom sizes may take 10 to 14 weeks. Getting suppliers involved early in the planning part is good for engineering teams. Keeping a smart store of common diameters (6-inch to 16-inch NPS) in standard wall thicknesses speeds up project timelines for things that are on the critical path. With an annual production capacity of 50,000 tons, which is split between thin-wall building service pipes, heat exchanger tubes, and industrial welded pipes, we can meet the needs of a wide range of projects quickly.

Applications and Industry Use Cases of ASTM A358 347H Class 1 Pipes

The qualities of the material we looked at give it special operating benefits in fields where chemical and thermal stresses are problems for regular materials.

Petrochemical and Refinery Applications

When hydrocrackers work at temperatures between 1000°F and 1400°F and pressures above 2000 psi, they need materials that can handle hydrogen attack, sulfidation, and thermal fatigue. ASTM A358 Grade 347 347H Class 1 Steel Pipes are used as transfer lines, feed preheater circuits, and high-temperature separator pipes. If they fail, hydrocarbons can leak out, and the unit has to be shut down for a longer time. In many cases, the stabilized microstructure gets rid of the need for heat treatment after welding, which lowers the cost of production and speeds up installation.

Power Generation Infrastructure

When ultra-supercritical boilers work at steam temperatures of up to 1292°F (700°C), they become more efficient. Superheater and reheater tubes made from ASTM A358 Grade 347 347H Class 1 Steel Pipes keep their mechanical strength in these situations and don't rust or corrode on the fireside or the steam side. A utility company in the Southwest said that inspection intervals were 25% longer after switching superheater outlet sections to 347H standard. They said that this was because the new specifications had better creep rupture qualities that stopped tubes from bulging and breaking.

Chemical Processing Operations

Pipes are exposed to corrosive media at high temperatures during the production of fertilizer using high-temperature nitric acid synthesis, synthetic polymer manufacturing, and organic chemical reactors. The mix of chromium, nickel, and niobium can stand up to both oxidizing and reducing environments. A European chemical company reported that their operational availability went from 87% to 94% after they switched from carbon steel pipes to ASTM A358 Grade 347 347H Class 1 Steel Pipes in their high-temperature neutralization section. This was because the corrosion-related maintenance outages were no longer happening.

Best Practices and Maintenance Tips for ASTM A358 347H Pipes

For optimal performance, care must be taken throughout the entire lifetime of an asset, from the time it is first installed until it has been used for decades.

Installation and Welding Guidelines

Sound welds are built on good joint preparation, which includes control of fit-up tolerances and beveling. Low-carbon filler metals (ER347 or ER347Si) should be used in welding, and the temperature between passes should be kept below 350°F to stop grain growth. Shielding gas purity (at least 99.995% argon) keeps pollution from happening, which lowers the resistance to rust. The passive oxide layer on the inside is kept in place by back cleaning during root pass welding. These steps make sure that the ASTM A358 Grade 347 347H Class 1 Steel Pipes are kept while it is being made.

Corrosion Prevention Strategies

Even tho ASTM A358 Grade 347 347H Class 1 Steel Pipes are very resistant to corrosion, environmental factors still need to be managed. In places where salt is present, keeping the surface clean stops crevice rust. Visual inspection and acoustic thickness measurement done on a regular basis can find any limited attack before wall loss threatens the pressure integrity. Moisture shields should be built into insulation systems because the chloride content under wet insulation speeds up rusting on the outside. These safety measures make things last longer in places like chemical processing or near the coast.

Thermal Cycling Management

Systems that start up and shut down a lot can benefit from stress analysis that looks at differential temperature expansion. The space between supports and the form of the hangers should allow for movement without putting too much stress on the joints. Using dry nitrogen to purge during long shutdowns stops internal oxidation that could damage the surface finish and flow characteristics. Keeping track of thermal cycles helps predictive maintenance programs, which lets replacements happen before fatigue cracks start to form.

Conclusion

Stabilized austenitic stainless steel pipes, like ASTM A358 Grade 347 347H Class 1 Steel Pipes, are designed to work well in fields that need strong performance at high temperatures, resistance to rust, and reliability over time. The niobium stabilization system, along with the high carbon content and strict production standards, improves performance, which can be seen in longer service intervals and lower lifecycle costs. Whether you're handling petrochemicals, making electricity, or making chemicals, your team will be able to choose materials that protect operating stability and capital investment if they understand the metallurgical principles and sourcing issues.

FAQ

What distinguishes Class 1 from other ASTM A358 pipe classes?

Class 1 pipes are welded twice with electric fusion and filler metal, and then they are inspected completely with X-rays. This gives the weld joint an efficiency of 1. This lets the full design stress be used. Class 2 uses single welding without filler, Class 3 uses laser or plasma welding, and Class 4 includes large-diameter single-welded pipe. Each has a different efficiency factor that affects the calculations for the pressure rating.

Can 347H pipes operate in chloride environments?

Austenitic stainless steels can crack when exposed to chloride stress corrosion above 140°F. However, ASTM A358 Grade 347 347H Class 1 Steel Pipes stabilized structure makes it more resistant than unstabilized grades. Suitability is based on concentration, temperature, and stress levels. Applications should look at the conditions at the spot; duplex stainless steel may be better in high-chloride situations where the temperature goes above 200°F.

How do you verify authentic ASTM A358 347H material?

Ask for Mill Test Reports (MTRs) that show chemical analysis and mechanical testing that can be linked to specific heat lots. Positive Material Identification (PMI) with X-ray fluorescence checks the makeup of a metal in real time. Radiography reports show that the weld inspection was done correctly. Reliable sellers provide full paperwork that meets the material requirements of ASME Section II, which allows for governmental approval and insurance certification.
