309S Welded Steel Pipes Support Furnace and Heat Treatment Applications

When industrial furnaces operate above 900°C, selecting the right piping material becomes critical to system reliability and safety. ASTM A358 309S Stainless Weld Steel Pipes deliver exceptional oxidation resistance and structural stability in these demanding environments. With elevated chromium content (22-24%) and nickel levels (12-15%), these electric fusion welded pipes maintain mechanical integrity through repeated thermal cycling, making them the preferred choice for heat treatment equipment, petrochemical reactors, and power generation facilities where failure is not an option.

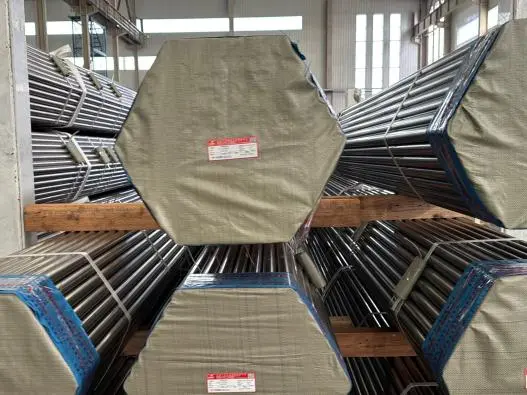

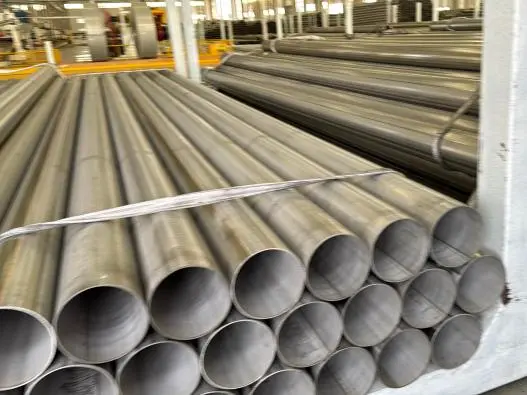

Understanding ASTM A358 309S Stainless Welded Steel Pipes

"ASTM A358" is the name of the standard for electric fusion welded (EFW) austenitic stainless steel lines that are made to work in high-temperature, corrosive pressure environments. Instead of being seamless, EFW pipes are made from plate material using controlled welding methods with suitable filler metals. This lets makers make ASTM A358 309S Stainless Weld Steel Pipes with larger diameters (from 114.3 mm to 2500 mm) more cheaply without losing performance.

Chemical Composition and Its Role in Thermal Performance

Grade 309S stands out because its chemical profile is carefully adjusted. Chrome with a value of 22% to 24% makes a thick oxide layer that protects the base metal from oxidation at temperatures close to 1000°C. When nickel is present at a level of 12% to 15%, it stabilizes the austenitic structure and stops phase changes that could damage the mechanical qualities when heated. The "S" at the end of the name means that the metal has a low carbon content (below 0.08%), which keeps the corrosion resistance at weld joints high by preventing carbide precipitation in heat-affected areas during welding.

Mechanical Properties for Pressure Applications

Tensile strength of ASTM A358 309S Stainless Weld Steel Pipes is at least 515 MPa, and yield strength is at least 205 MPa when the pipes are at room temperature. These numbers make sure that the pipes can handle internal pressures while keeping their shape. The material's melting range of 1398–1454°C and density of 8 grams per cubic centimeter give design engineers reliable limits for figuring out how much the material will expand and how much support it needs in furnace installations.

Manufacturing Process and Quality Assurance

At Youfa Stainless Steel Pipe Co., Ltd., we use cutting-edge EFW technology on 15 production lines that can make 50,000 tons of these pipes every year. Each pipe is tested using both ultrasonic (UT) and radiography (RT) methods to make sure the weld is solid. Our ISO 17025-certified lab does mechanical testing and analysis of chemical composition. They provide full documentation, such as Mill Test Certificates (EN 10204 3.1/3.2), Welding Procedure Specifications (WPS), and Procedure Qualification Records (PQR). This strict method makes sure that every pipe meets the ASTM A358 standards for Classes 1 thru 5. This gives procurement teams the peace of mind they need for important uses.

Furnace and Heat Treatment Applications of 309S Welded Pipes

Pipe materials are put thru a lot of stress in thermal processing plants. Heating and cooling over and over again causes thermal stress, and oxidizing atmospheres damage metal surfaces. These problems can be solved by ASTM A358 309S Stainless Weld Steel Pipes because they work better at high temperatures, which makes them essential in many industrial settings.

Industrial Furnace Components

Pipes that carry process gasses, cooling fluids, or burning air at high temperatures must be able to keep the structure of heat treatment furnaces intact. The 309S grade is better than normal 300-series stainless steels at stopping scaling, which is when rust layers form and break off. Because of this resistance, there are longer gaps between service visits and lower maintenance costs. Manufacturers of equipment for metallurgical processing, especially those that serve companies that make rocket parts and heat treat cars, use ASTM A358 309S Stainless Weld Steel Pipes to move protected atmospheres and cooling media.

Petrochemical Reactor Systems

Catalytic crackers, reformers, and thermal oxidizers work in places where chemicals and high temperatures make it hard for materials to do their job. Electric fusion welding makes it possible for ASTM A358 309S Stainless Weld Steel Pipes to handle streams of hydrocarbons, toxic intermediates, and burning gasses at temperatures where normal austenitic grades would break. Welded construction makes it possible to make transfer lines and reactor inlet pipes with diameters bigger than 600 mm, which isn't possible with seamless construction.

Power Generation Infrastructure

Buildings for making electricity modern power plants need materials that can handle high temperatures and be easily welded in order to work in their boiler feedwater systems, superheater tubes, and exhaust gas return circuits. We've provided ASTM A358 309S Stainless Weld Steel Pipes to a number of power plant projects where steam temperatures are higher than 540°C and pressures are up to 10 MPa. The low carbon content makes sure that welded joints don't sensitize, which is a type of degradation that can cause intergranular rust in stable grades after being exposed to heat for a long time.

Comparing Performance Across Thermal Environments

Why ASTM A358 309S Stainless Weld Steel Pipes work better than other options is shown by tests done at high temperatures. At 980°C in air, 309S has 40% lower oxidation rates than 304H and keeps its ductility, which 310S sometimes gives up to have better heat resistance. The 17.8 × 10⁻⁶/°C thermal expansion coefficient lets builders allow for movement without putting too much stress on support structures. This is common in batch heat treatment operations where temperatures change from room temperature to operating temperature.

Comparing ASTM A358 309S with Alternative Stainless Steel Pipes

To choose the best piping grade, you need to know how ASTM A358 309S Stainless Weld Steel Pipes stack up against other heat-resistant stainless steels in a number of performance areas. Depending on the working conditions and funds, each grade has its own benefits.

Grade 304 and 304L: General Purpose Limitations

304 stainless steel works great in modest settings, but its highest suggested service temperature of 870°C is too low for furnace use. The 18–20% chromium content is good for short-term exposure to oxidation, but it can't compete with ASTM A358 309S Stainless Weld Steel Pipes for long-term high-temperature service. 304L is easier to weld because it has less carbon in it, but it is also weaker at high temperatures. When purchasing managers compare prices and performance, 304 types are about 15 to 20 percent less expensive than 309S, but they need to be replaced more often in thermal uses, which cancels out the initial savings.

Grade 310S: When Maximum Heat Resistance Matters

Grade 310S has a higher protection to rust up to 1150°C because it has 24-26% chromium and 19-22% nickel. While 310S has some benefits, it also has some drawbacks. The higher nickel content makes the material 25–30% more expensive than ASTM A358 309S Stainless Weld Steel Pipes, and the higher alloy content makes it harder to machine and build. We suggest 310S when working temperatures regularly go above 1000°C or when extra rust protection is needed when exposed to sulfur-containing atmospheres. For most furnace uses that run between 900°C and 980°C, 309S is the best choice because it is both fast and cheap.

Grade 321: Stabilized Alternative

Titanium is added to Type 321 to stop chromium carbide from precipitating. This makes it safe for use in the 430–900°C range. But the titanium stability doesn't work as well at high temperatures, which is where ASTM A358 309S Stainless Weld Steel Pipes really shine. When weld heat-affected zones are exposed to temperatures above 900°C for a long time, the low-carbon method of 309S works better than stability. In chemical processing plants that work with acids and chlorides, 321 may be better because it doesn't rust between the grains, but 309S is better for heating uses because it doesn't oxidize.

Welded Versus Seamless Construction

When it comes to general corrosive service, ASTM A312 defines seamless and welded pipe, while ASTM A358 is all about EFW pipe for high-temperature pressure purposes. Seamless pipes don't have a weld seam, so their properties should be the same all the way around. Modern EFW technology, on the other hand, uses 100% radiography examination to make joints that are as efficient as the base metal (1.0). When the width is more than 406 mm, welded pipe is more readily available and has shorter wait times. We can make things up to 2500 mm in diameter, which is a size that can't be done with seamless construction.

Procurement Guide for ASTM A358 309S Stainless Welded Steel Pipes

When you're looking for ASTM A358 309S Stainless Weld Steel Pipes strategically, you need to pay attention to technical specs, seller qualifications, and value-added services that lower project risk and guaranty on-time delivery.

Critical Specification Parameters

When engineering teams make purchase orders, they have to define pipe class (1 thru 5), which tells them what tests they need to do and what size flaws are okay. Complete radiography and solution heating are done on Class 1 pipes, which make them ideal for the most important services. Class 3 pipes only get weld-only radiography, which is fine for many burner uses where saving money is important. Corrosion limit, internal pressure, and temperature stress should all be taken into account when figuring out wall thickness. We help customers check these factors against the standards of the ASME B31.3 process piping code.

Supplier Qualification and Certification

Reliable suppliers keep certifications that show how well their quality systems work and how technically skilled they are. Our ISO 9001 quality management system makes sure that all of our processes are consistent, and our PED (Pressure Equipment Directive) certification lets us supply to projects in Europe. TÜV approval is a third-party check of the rules used in manufacturing. In addition to certificates, you should look at how much experience the seller has in your field. For example, our portfolio includes projects for fuel cell manufacturers, battery module suppliers, and chemical processing facilities, which shows that we understand the practical needs of a wide range of applications.

Value-Added Fabrication Services

Cutting to length, beveling to prepare for welding, and hydraulic testing before shipping all lower the risk of work going over schedule and on the job site. At YOUFA, we offer these services as well as on-site execution support for projects that need hands-on expert help because they are so complicated. Before fabrication starts, our engineering team looks over the installation drawings to find any problems that might come up. This keeps us from having to make expensive changes in the field. This way of working together has helped companies that make batteries, parts for cars, and builders who build power plants meet tight project deadlines.

Logistics and Documentation Management

Transportation, customs processing, and paperwork need to be carefully coordinated for international projects. For standard specs, we can deliver to Tianjin Port within seven days. Our MOQ is flexible, and we can even send you a single piece for testing and review. Each shipment comes with full material traceability paperwork, such as heat numbers that connect pipes to mill test reports, third-party inspection certificates, and records of non-destructive testing. This documentation package meets the needs of quality auditors and provides the proof needed to comply with regulations in all areas of the world.

Ensuring Quality: Testing and Standards of ASTM A358 309S Pipes

Quality assurance is more than just making sure that products are made correctly; it also includes checking that they are fit for the purpose they are meant for. Tough testing rules keep ASTM A358 309S Stainless Weld Steel Pipes from breaking down too soon and make sure they work as expected over their whole life.

Chemical Composition Verification

Optical emission spectroscopy checks the amount of chromium, nickel, carbon, and minor elements in each heat of steel against ASTM standards. This test confirms that the material will have the corrosion and oxidation resistance that was expected. We keep records of the makeup that can be traced back to the original mill approvals. This lets us look into any strange service behavior. If a customer asks for it, we can do extra composition testing for important uses in hydrogen production equipment or medical device manufacturing.

Mechanical Property Testing

Tensile testing shows that the basic standards for yield strength, maximum tensile strength, and elongation have been met. These features make sure that pipes can handle the stresses of fitting, internal pressure, and thermal growth loads. Testing for hardness is another way to make sure that the heat treatment was done right. Metallurgical study of the cross-sections of the welds shows that they are fully fused, that there are no cracks, and that the microstructure is correct. Under the rules of statistical quality control, the results of these damaging tests are applied to the whole batch of products that were tested.

Non-Destructive Examination Methods

Ultrasonic testing finds internal flaws like holes, inclusions, or incomplete fusion that could cause the material to break when it is put under pressure or heated and cooled. Radiographic testing creates lasting film records of the quality of the weld, meeting the needs of inspectors and providing records for future use. We do full UT and RT on all pipes, not just inspections of samples. This all-around method has made us stand out when customers compare suppliers, especially those in the aircraft and car industries, where failure can have very bad results.

The Cost of Cutting Corners

Pipes that aren't approved may look the same, but they don't have the metallurgical uniformity and weld integrity that are needed for effective service. We have helped with failure investigations where poor quality materials led to unplanned shutdowns, lost production, and safety incidents. When emergency replacements, long downtime, and possible responsibility are added to the total cost of ownership, the original savings from low-price sources are lost. When buying something, people should look at the supplier's credentials, how rigorous the tests are, and their documented quality history along with the unit price.

Conclusion

ASTM A358 309S Stainless Weld Steel Pipes made to standards have the thermal performance, rust resistance, and structural dependability that are needed for use in furnaces and heat treatment processes. The grade's high chromium and nickel content and low carbon levels make it easy to weld without affecting its ability to withstand high temperatures. When used at temperatures between 900°C and 1000°C, the 309S grade is the best combination of performance and value compared to grades like 304, 321, and even 310S. When you do strategic buying, you need to pay attention to pipe class specs, supplier certifications, and thorough testing methods that make sure the material is solid. YOUFA's manufacturing capacity, high-quality infrastructure, and technical support make us a reliable partner for projects that need both high-quality materials and guarantyd delivery.

FAQ

What makes 309S welded pipe suitable for furnace applications?

When 22-24% chromium and 12-15% nickel are mixed, they form an oxide layer that protects against scaling and oxidation at temperatures up to 1000°C. The low carbon content (below 0.08%) stops carbide from forming in bond heat-affected zones, so the resistance to rust stays high even after many thermal cycles. Because it has the right mechanical qualities for pressure service and this metallurgical structure, ASTM A358 309S Stainless Weld Steel Pipes are perfect for heat treatment furnaces, thermal oxidizers, and petrochemical reactors.

How does 309S compare to 310S for high-temperature service?

While 310S can handle a slightly higher maximum temperature (1150°C vs. 1000°C), 309S is cheaper and works well enough for most furnace applications. The 310S grade has more nickel, which makes it more difficult to work with and raises the cost of materials by about 25 to 30 percent. The 309S is a better deal for uses that work at temperatures between 900°C and 980°C without sacrificing reliability.

Can you provide custom lengths and fabrication services?

YOUFA lets you make a lot of changes, like cutting to specific lengths, beveling to get ready for welding, and hydrostatic testing before shipping. Our engineering team looks at the needs of the project and comes up with value-added services that cut down on the time needed for site work and installation. We don't have a set minimum order number. We ship everything from single pieces for testing to big project quantities.

Partner with YOUFA for Your High-Temperature Piping Needs

ASTM A358 309S Stainless Weld Steel Pipes are ready at YOUFA Stainless Steel Pipe Co., Ltd. to help you with your next furnace or heat treatment project. We are an experienced maker that works with chemical processors, car suppliers, and new energy industries. We use our advanced EFW production skills and strict quality control to make sure that the pipes we send you meet all of your strict requirements. Our technical team helps with engineering from the first review of the design all the way thru completion. Our flexible fabrication services, such as custom cutting and beveling, cut down on the time needed for placement on-site. You can talk to one of our systems engineers about your needs by emailing info@youfass.com, or you can visit youfass.com to see all of our stainless steel pipe options. We give procurement professionals the quality, documentation, and service they need, whether they need a single test sample or a whole system supply.
