ASTM A312 TP347 347H Stainless Steel Pipes

When warm and damaging environments collide, YOUFASS's ASTM A312 TP347 347H Stainless Steel Pipes do a great job. As a Best 500 endeavor in China, we work 15 generation lines with an yearly yield of 50,000 tons, sponsored by ISO 9001, PED, and ISO 17025 certifications. Our TP347/347H pipes are niobium-stabilized, giving predominant resistance to intergranular erosion and carbide precipitation at hoisted temperatures. With a least arrange amount of fair 1 pipe and conveyance in as quick as 7 days to Tianjin Port, we make quality open for ventures of any scale.

What Makes ASTM A312 TP347 347H Stainless Steel Pipes Special?

Niobium stabilization is present in the austenitic stainless steel TP347. This stabilization protects your pipe structure from intergranular erosion when the temperature is between 427°C and 816°C (800°F and 1500°F). The "H" grade—TP347H—features a controlled carbon extend outlined particularly for high-temperature weight benefit in boilers, superheaters, and warm exchangers.

Why choose TP347 over other grades?

You get superior weldability without post-weld warm treatment in numerous cases. The niobium expansion ties up carbon, anticipating chromium carbide arrangement that debilitates grain boundaries. This makes ASTM A312 TP347 347H Stainless Steel Pipes perfect for petrochemical plants, control era, and any prepare where warm cycling is routine.

Technical Specifications at a Glance

Parameter	Details
Grades	TP304/TP304L, TP316/TP316L, TP316Ti, TP317/TP317L, TP321/TP321H, TP347/TP347H, TP309S/TP309H, TP310S/TP310H
Standard	ASTM A312/A312M-22
Manufacturing Process	Seamless (SMLS), Welded (WLD), Heavily Cold Worked (HCW)
Outside Diameter (OD)	NPS 1/8"–48" (DN6–DN1200 / Ø10.3 mm–Ø1219 mm)
Wall Thickness (WT)	Sch 5S to Sch XXS
Wall Thickness Tolerance	+15% to +22.5% / -12.5% (per ASTM A312)
Length	Random length or fixed length
Heat Treatment	Solution Annealed & Water Quenched
Surface Finish	Pickled & Annealed, Bright Annealed, Electropolished, Passivated
End Finish	Plain end (up to 2"), Beveled end (2" and above)
Packaging	Wooden box (optional steel frame), hexagonal binding + woven bag

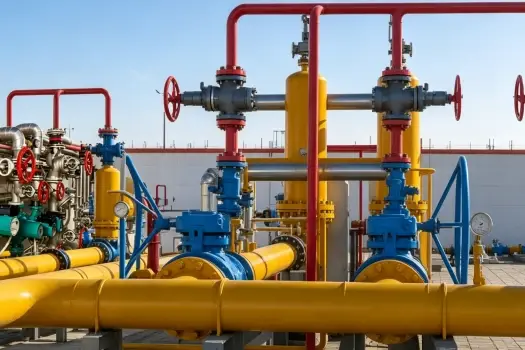

Where You Can Rely on TP347 and TP347H Pipes

High-temperature benefit: TP347H's warm solidness is good for boilers, superheaters, steam lines, and petrochemical reactors.

Corrosive situations: Oil refining, chemical preparing, and flue-gas taking care of frameworks request the intergranular erosion resistance that niobium stabilization provides.

Pressure applications: Control plants and mechanical liquid frameworks believe TP347H's controlled carbon substance for maintained mechanical quality beneath stress.

Heat exchangers: The combination of weldability and warm resistance makes these ASTM A312 TP347 347H Stainless Steel Pipes a go-to choice for warm exchange hardware in challenging conditions.

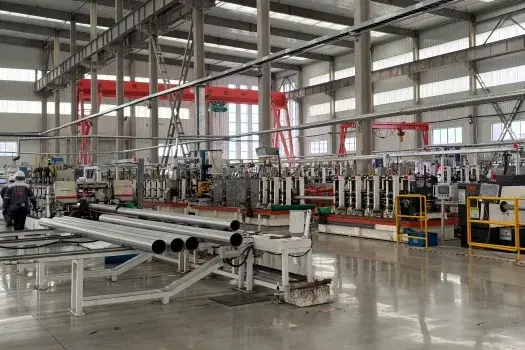

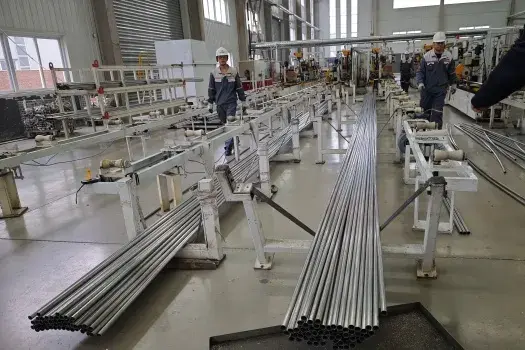

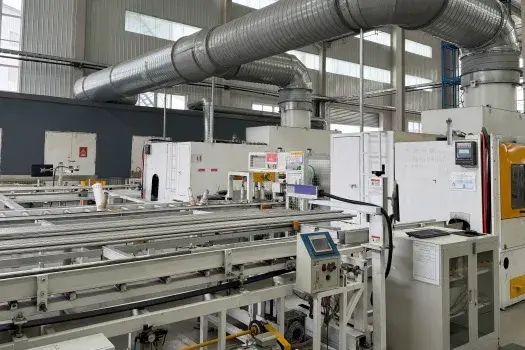

Why YOUFASS Is Your Trusted Partner

Proven ability and size: We carefully manage orders for anything from single pipes to large-scale projects with more than 200 representatives and 15 specialized generating lines.

Comprehensive quality confirmation: Our ISO 17025-accredited research facility guarantees each group meets ASTM A312 measures. You get full traceability with MTC/MTR 3.1/3.2, TPI, WPS/PQR, MPS, and UT/RT reports upon request.

Flexible and quick: Require a little trial arrange? We acknowledge MOQ of 1 pipe. Tight due date? Our quickest conveyance comes to Tianjin Port in fair 7 days.

One-stop arrangement: From crude fabric sourcing to on-site commissioning back, we facilitate the whole supply chain so you can center on your center extend goals.

Standards and Certifications:

ISO 9001 Quality Management
PED (Pressure Equipment Directive)
TÜV certification.

Certifications

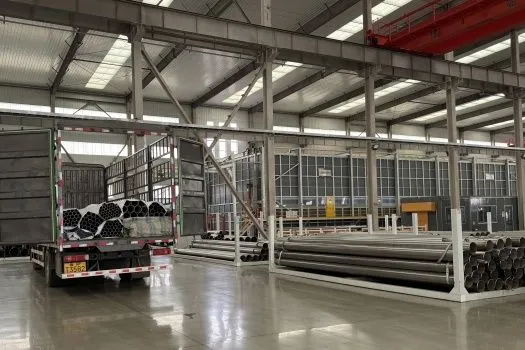

Flexible requesting, quick delivery:

Need a test? Arrange fair one pipe. Arranging a major venture? We'll facilitate end-to-end supply. With quickest conveyance in 7 days to Tianjin Harbour, your plan remains on track.

Clients' approval & trust

product-1-1

Frequently Asked Questions

Q:What is TP347 pipe material?

A:TP347 is a niobium-stabilized austenitic stainless steel outlined for improved resistance to intergranular erosion, particularly after welding or high-temperature exposure.

Q:Why use TP347 instead of TP321?

A:While TP321 employments titanium for stabilization, TP347 utilizes niobium. In certain high-temperature or destructive situations, niobium offers predominant resistance to intergranular erosion and superior long-term stability.

Q:What is TP347H used for?

A:TP347H is the high-carbon adaptation of TP347, particularly designed for elevated-temperature weight benefit in boilers, superheaters, and comparable applications where crawl quality is critical.

Q:Can I order a sample or small quantity?

A:Absolutely. Our least arrange amount is fair 1 pipe, so you can test fabric execution some time recently committing to a bigger purchase.

Q:What documentation do you provide?

A: We provide all the necessary documents, such as mill test certificates (MTC/MTR 3.1 or 3.2), third-party inspection reports (TPI), welding procedure specifications (WPS/PQR), material pedigree sheets (MPS), and non-destructive testing results (UT/RT).

Ready to Secure Quality Piping for Your Next Project?

Work with YOUFASS to get ASTM A312 TP347 347H Stainless Steel Pipes that are strong and fulfill the highest standards. Reach out today at info@youfass.com to discuss your specifications.
